Fastener Specifications
Low Frequency Console Antenna
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Ignition Lock Key Transmitter Antenna Bracket Bolt [2x] | - | - | 0.8 N.m (7 lb in) | Low Frequency Console Antenna Replacement |

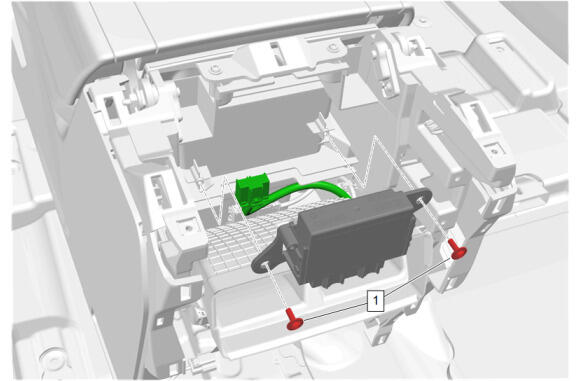

UHF Short Range Low Energy Remote Control Access Transceiver (BOY)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | UHF Short Range Low Energy Remote Control Access Transceiver Bolt [2x] | - | - | 1.5 N.m (13 lb in) | UHF Short Range Low Energy Remote Control Access Transceiver Replacement (BOY) |
