Fastener Specifications
Front Lower Control Arm
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Lower Control Arm Nut [2x] | - | - | First Pass: 180 N.m (133 lb ft) Final Pass: 90 - 105 Degrees |
Front Caster and Camber Adjustment |
| 2 | Front Lower Control Arm Adjust Bolt [2x] | - | - | - | Lower Control Arm Replacement (RWL) , or Lower Control Arm Replacement (F48) |

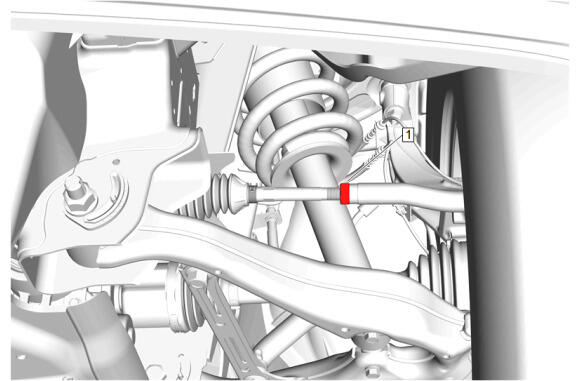

Steering Linkage Inner Tie Rod Nut
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Steering Linkage Inner Tie Rod Nut | - | - | 75 N.m (55 lb ft) | Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment |
