Home >> Chevrolet >> 2025 >> Malibu LT >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Shift Lock Control System >> Schematic Wiring Diagrams >> Shift Lock Control Wiring Schematics >> Shift Lock Control and Park Position Switch

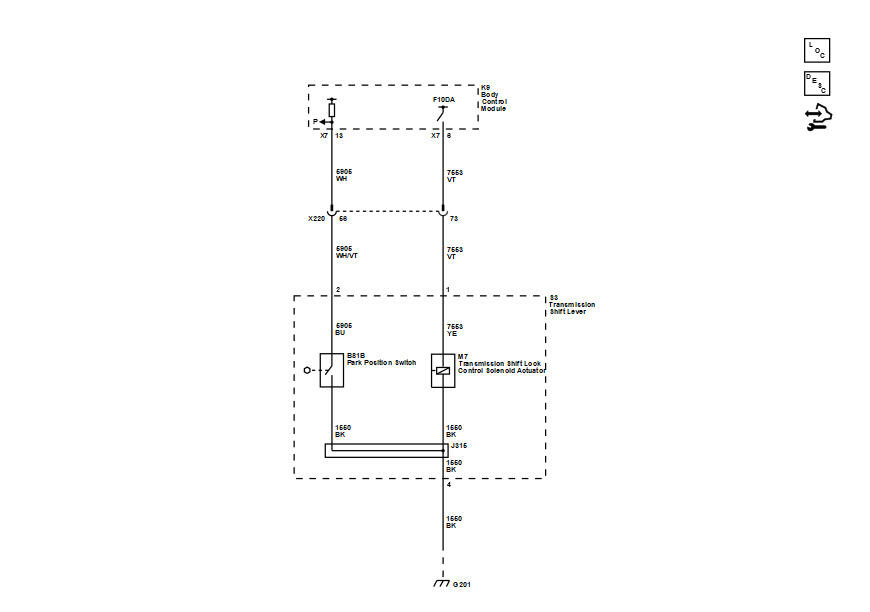

Shift Lock Control and Park Position Switch

GM6486542

Courtesy of GENERAL MOTORS COMPANY
