Installation Procedure

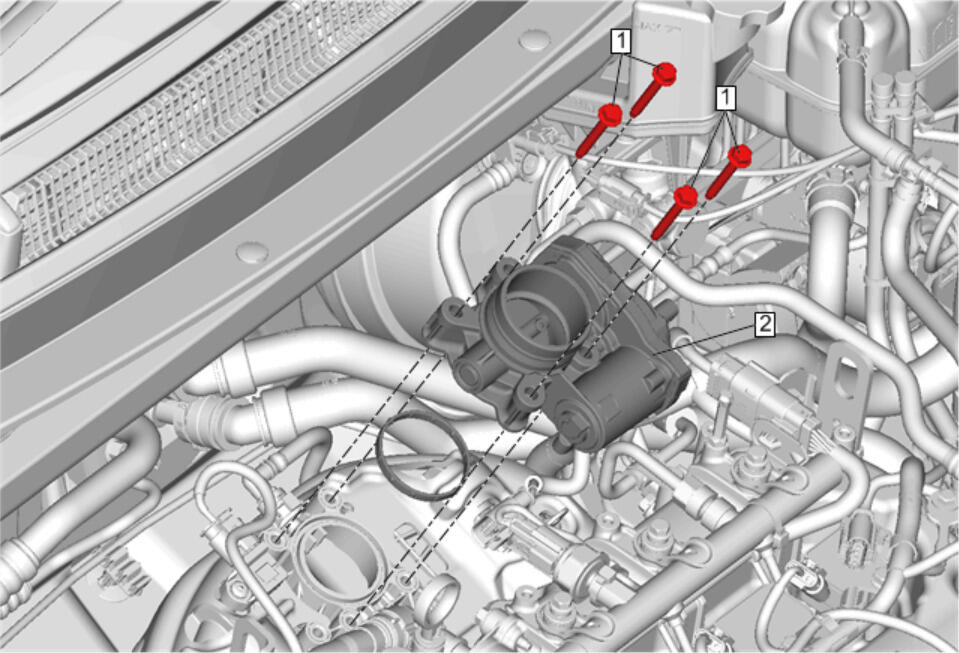

  1. GM3976144Courtesy of GENERAL MOTORS COMPANY

    Install the NEW gasket.

  2. Throttle Body (2) - Install
    3. CAUTION:

    Refer to Fastener Caution .

  3. Throttle Body Bolt (1) - Install and tighten [4x] 10 N.m (89 lb in)
  4. Connect the electrical connector.

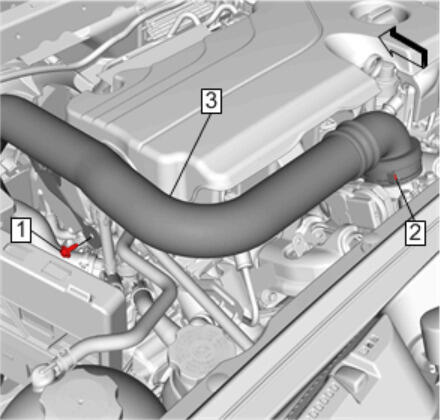

  5. GM4242227Courtesy of GENERAL MOTORS COMPANY

    Charge Air Cooler Outlet Air Tube (3) - Install

  6. Retainer Spring (2) - Engage
  7. Charge Air Cooler Outlet Air Tube Fastener (1) - Install and tighten 9 N.m (80 lb in)

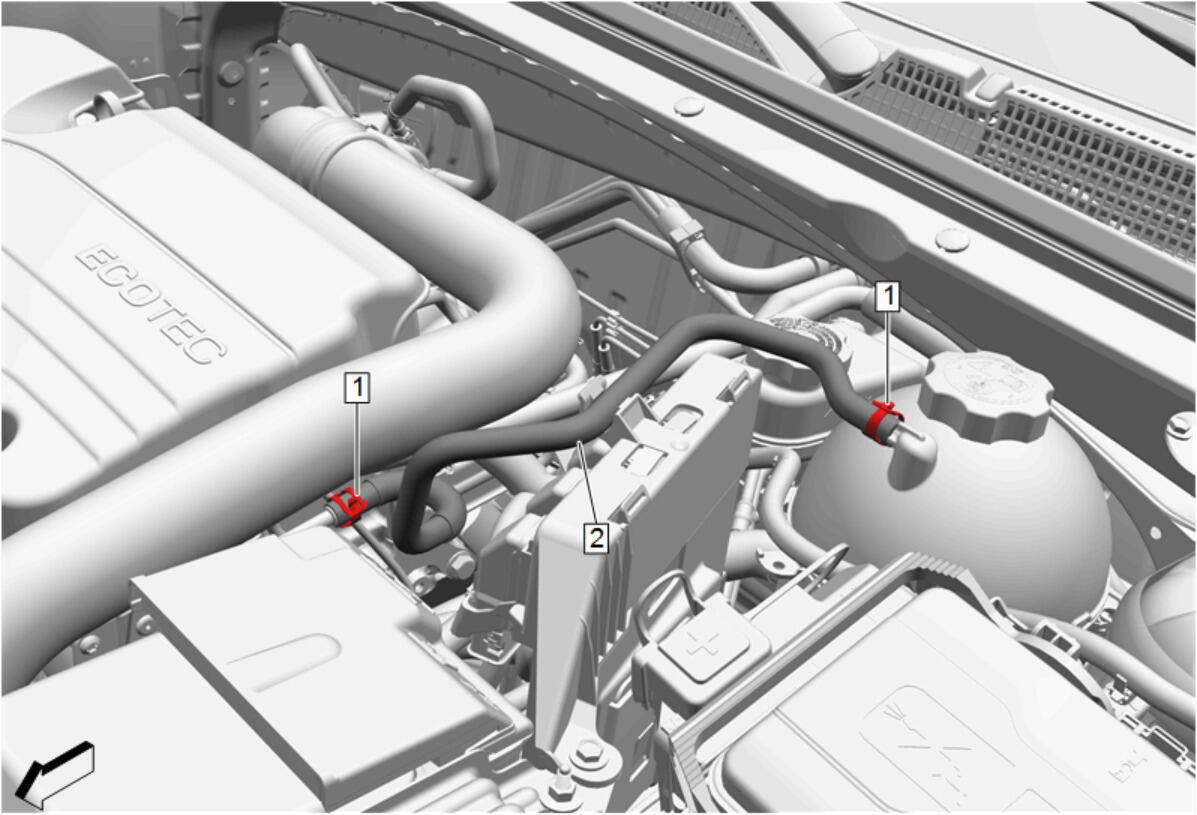

  8. GM5124904Courtesy of GENERAL MOTORS COMPANY

    Engine Coolant Air Bleed Hose (2) @ Engine Control Module Bracket - Install

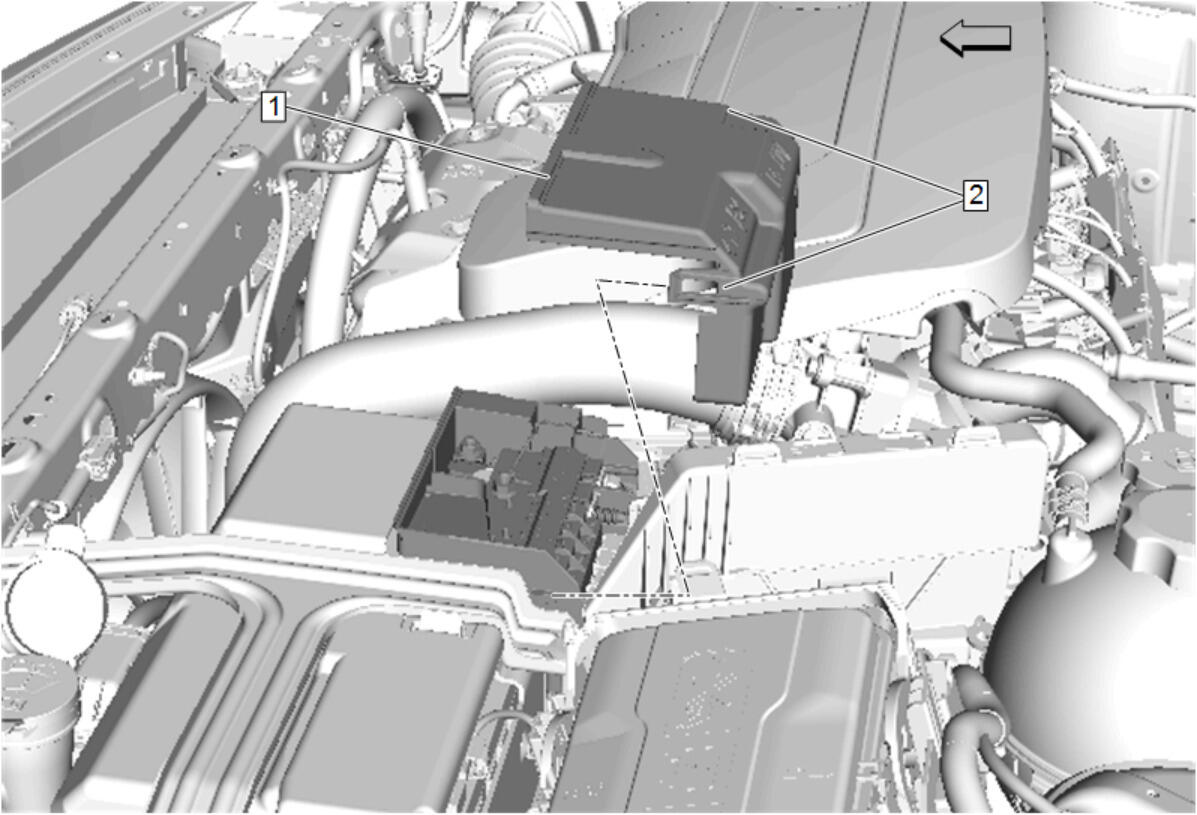

  9. GM5112527Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Fuse Block Cover (1) - Install

  10. Retaining Tab (2) - Install [2x]
  11. Perform the intake system learned values reset. Intake System Learned Values Reset
  12. Perform the throttle body idle air flow compensation reset procedure. Throttle Body Idle Air Flow Compensation Reset
