Fastener Specifications

Fig 1: Exploded View Of Exhaust Front Pipe
GM6490007Courtesy of GENERAL MOTORS COMPANY
Exhaust Front Pipe

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Exhaust Front Pipe Nut [2x] - - 22 N.m (16 lb ft) Exhaust Front Pipe Replacement
2 Exhaust System Intermediate Gasket Yes - - Exhaust Front Pipe Replacement
3 Catalytic Converter Nut [2x] - - 22 N.m (16 lb ft) Exhaust Front Pipe Replacement
4 Exhaust System Front Gasket Yes - - Exhaust Front Pipe Replacement

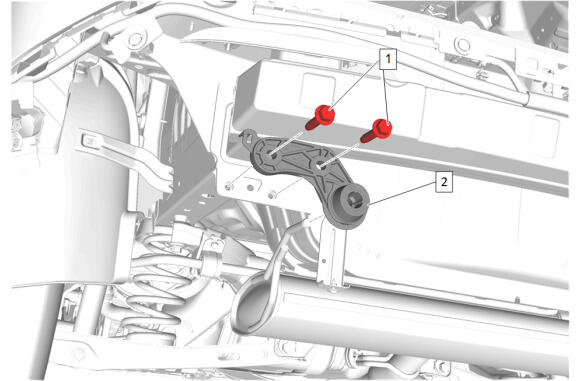

GM6482809Courtesy of GENERAL MOTORS COMPANY
Exhaust Rear Muffler Insulator - Left Side

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Exhaust Muffler Hanger Bracket Bolt [2x] - - 58 N.m (43 lb ft) Exhaust Rear Muffler Insulator Replacement (Right Side) , or Exhaust Rear Muffler Insulator Replacement (Left Side)

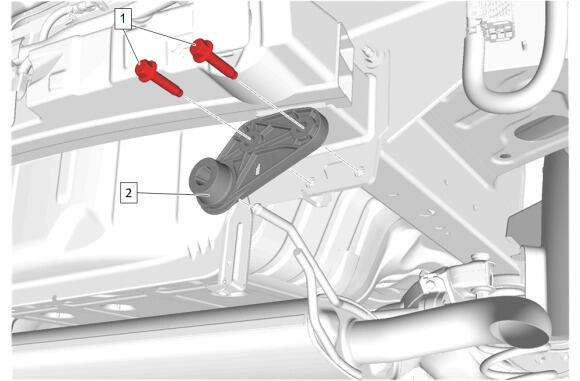

GM6482808Courtesy of GENERAL MOTORS COMPANY
Exhaust Rear Muffler Insulator - Right Side

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Exhaust Muffler Hanger Bracket Bolt [2x] - - 58 N.m (43 lb ft) Exhaust Rear Muffler Insulator Replacement (Right Side) , or Exhaust Rear Muffler Insulator Replacement (Left Side)

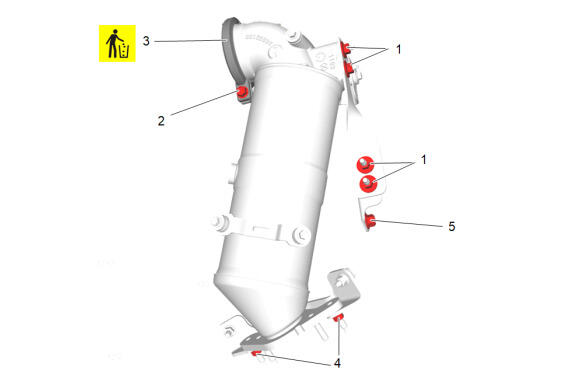

GM6490014Courtesy of GENERAL MOTORS COMPANY
Warm Up Three-Way Catalytic Converter

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Catalytic Converter Brace Bracket Nut [4x] - - 22 N.m (16 lb ft) Warm Up Three-Way Catalytic Converter Replacement
2 Catalytic Converter Clamp Bolt - - 15 N.m (11 lb ft) Warm Up Three-Way Catalytic Converter Replacement
3 Catalytic Converter Clamp Yes - - Warm Up Three-Way Catalytic Converter Replacement
4 Catalytic Converter Brace Bracket Nut - - 22 N.m (16 lb ft) Warm Up Three-Way Catalytic Converter Replacement
5 Catalytic Converter Brace Bracket Nut - - 58 N.m (43 lb ft) Warm Up Three-Way Catalytic Converter Replacement

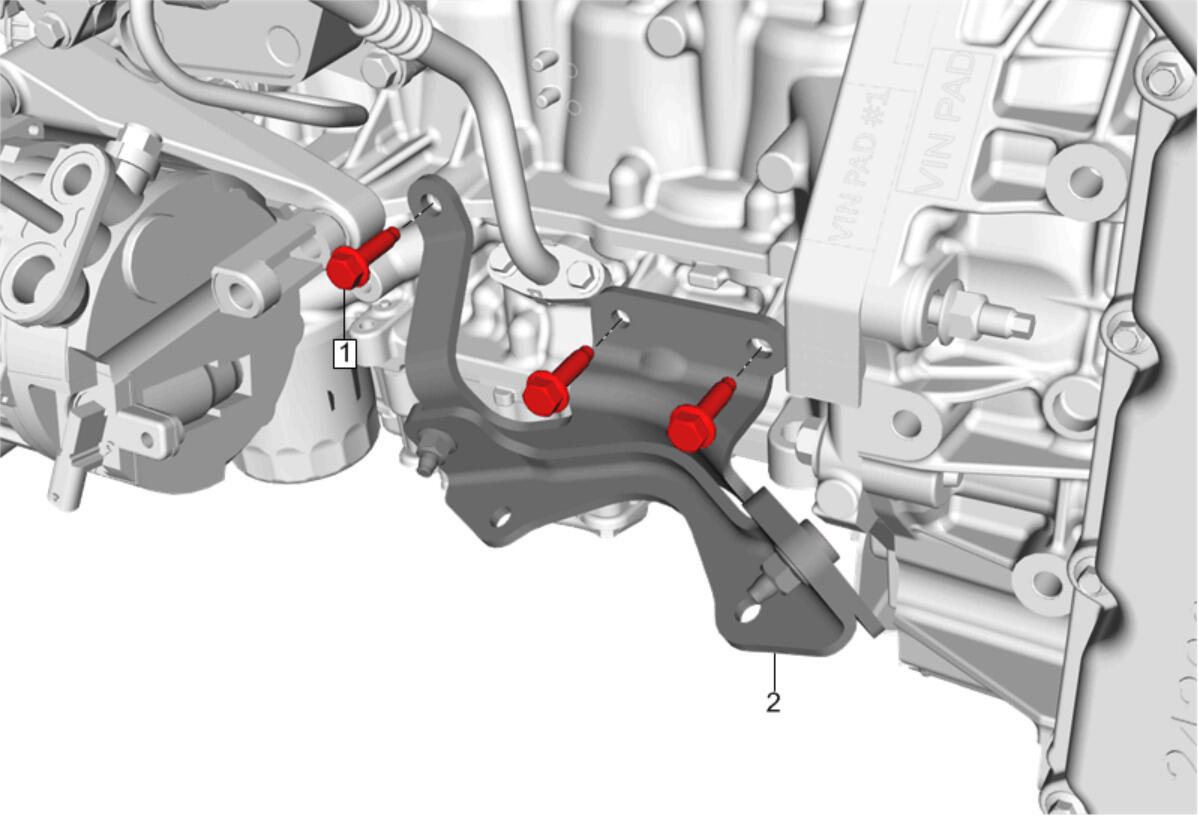

GM4213618Courtesy of GENERAL MOTORS COMPANY
Catalytic Converter Brace Bracket - Lower

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Catalytic Converter Brace Bracket Bolt [3x] - - 58 N.m (43 lb ft) Catalytic Converter Brace Bracket Replacement (Upper) , or Catalytic Converter Brace Bracket Replacement (Lower)
GM5907999Courtesy of GENERAL MOTORS COMPANY
Catalytic Converter Heat Shield

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Catalytic Converter Heat Shield Bolt [3x] - - 9 N.m (80 lb in) Catalytic Converter Heat Shield Replacement

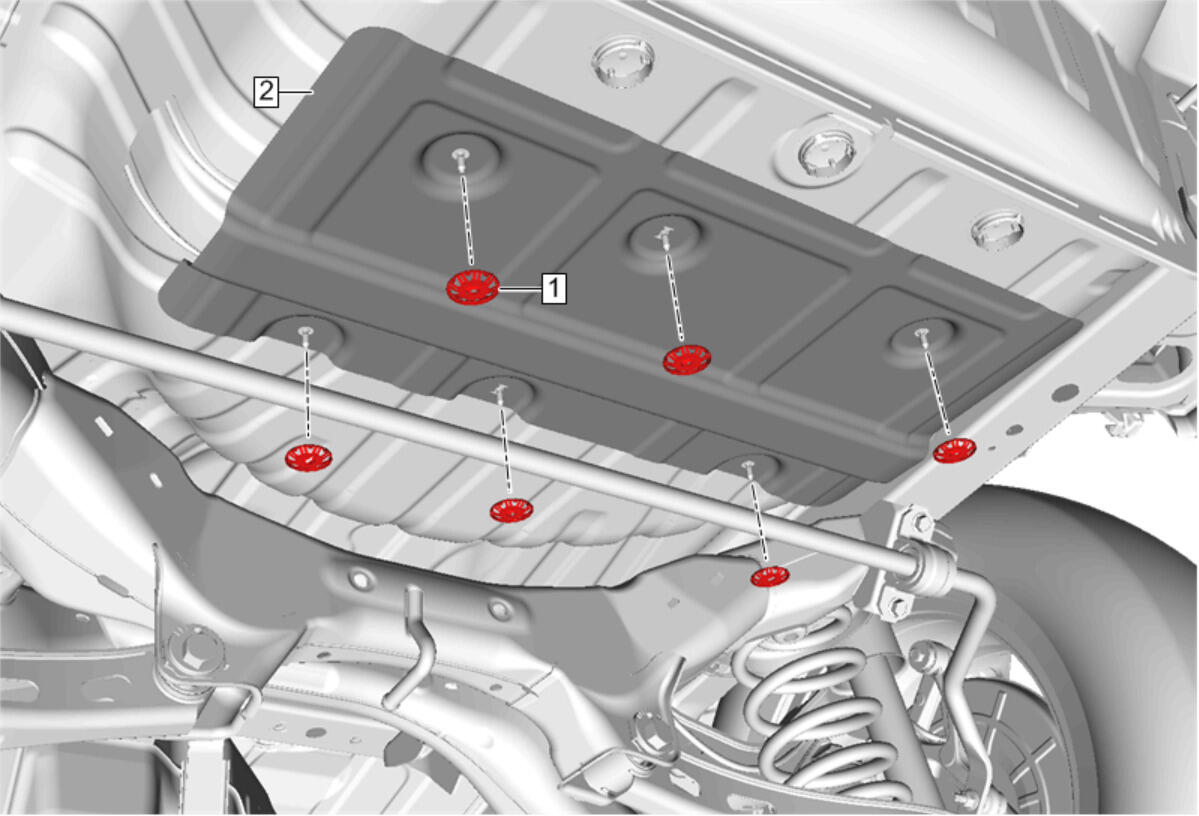

GM4587529Courtesy of GENERAL MOTORS COMPANY
Exhaust Muffler Heat Shield

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Exhaust Heat Shield Retainer [6x] - - 2 N.m (18 lb in) Heated Oxygen Sensor Replacement - Sensor 2

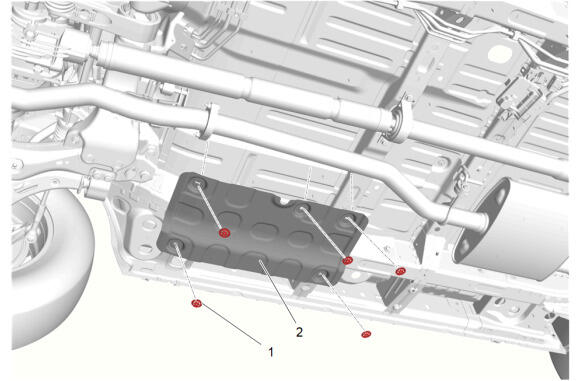

GM6485965Courtesy of GENERAL MOTORS COMPANY
Exhaust Front Underbody Heat Shield

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Exhaust Front Underbody Heat Shield Retainer [5x] - - 2 N.m (18 lb in) Exhaust Front Underbody Heat Shield Replacement

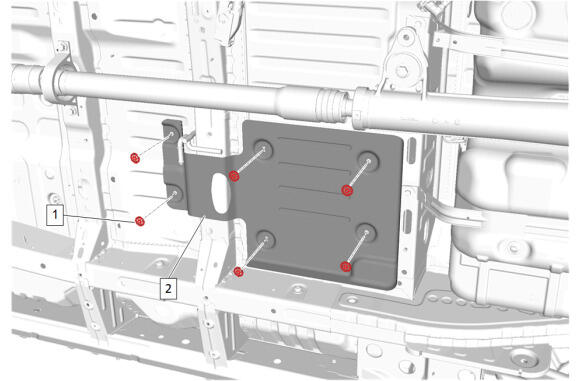

GM6431608Courtesy of GENERAL MOTORS COMPANY
Exhaust Intermediate Underbody Heat Shield

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Exhaust Intermediate Underbody Heat Shield [6x] - - 2 N.m (18 lb in) Exhaust Intermediate Underbody Heat Shield Replacement
