Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

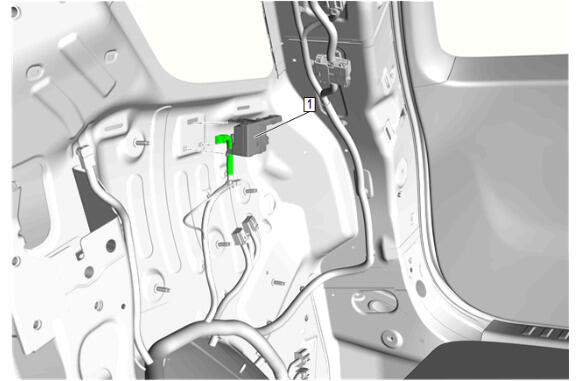

Remote Function Actuator Module (1) - Install
Ensure that the retaining tabs are fully secured.
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.

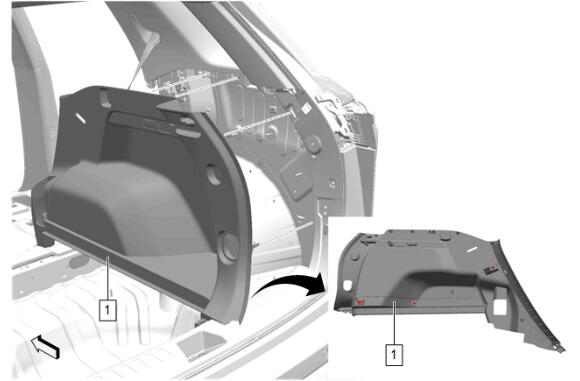

Quarter Lower Rear Trim Panel - Right Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

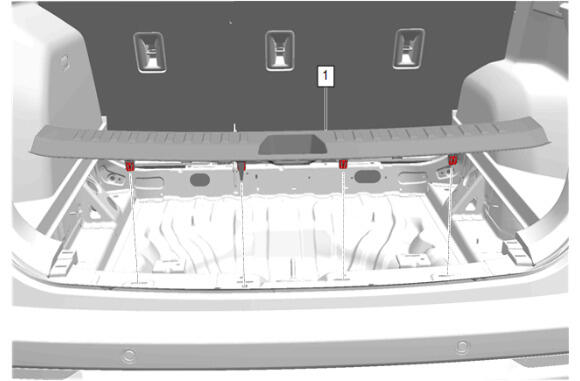

Liftgate Sill Garnish Molding (2) - Install
Courtesy of GENERAL MOTORS COMPANY

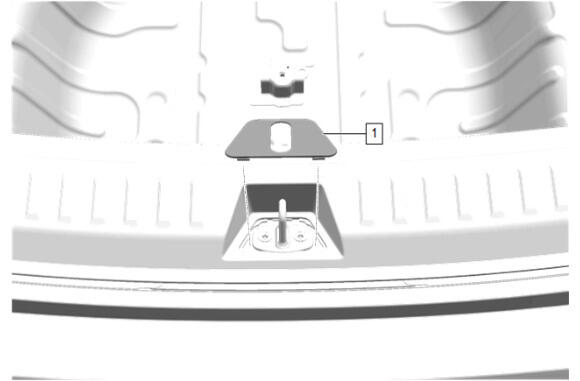

Liftgate Lock Striker Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

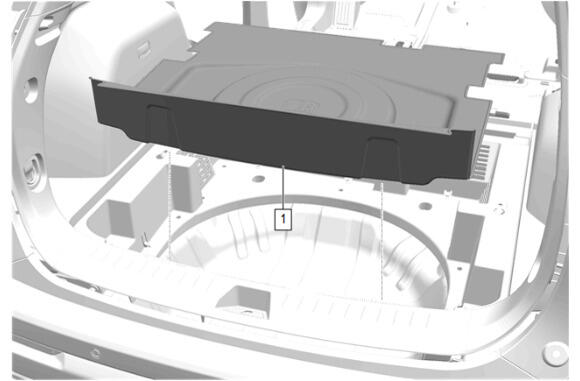

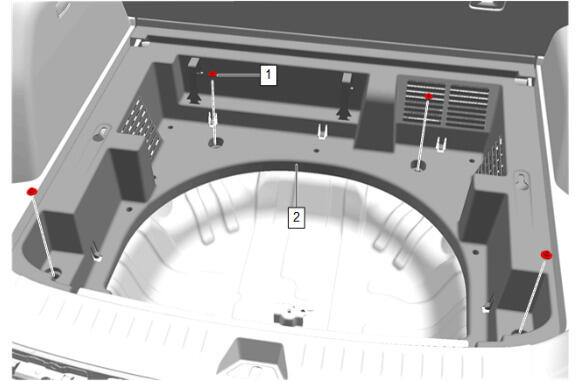

Rear Compartment Floor Stowage Trim Compartment (2) - Install

CAUTION:

Rear Compartment Floor Stowage Compartment Divider Retainer (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Rear Compartment Floor Panel Trim (1) - Install
Courtesy of GENERAL MOTORS COMPANY

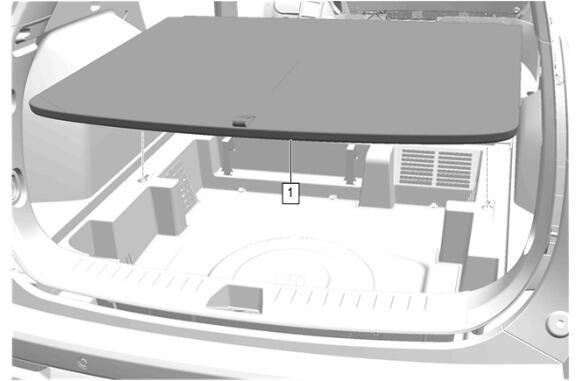

Load Floor Trim Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

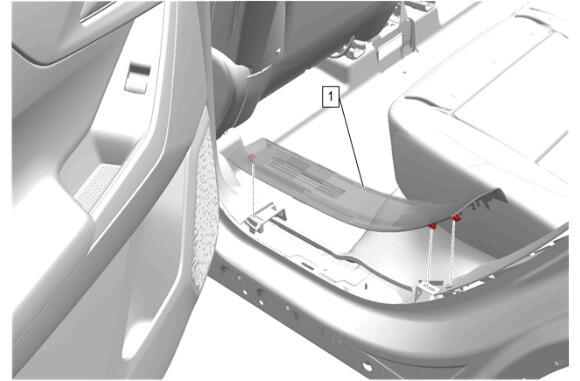

Rear Side Door Sill Garnish Molding - Right Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

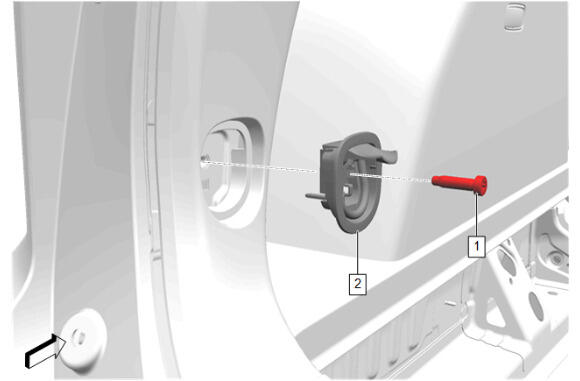

Cargo Tie Down Loop - Right Side (2) - Install
Cargo Tie Down Loop Bolt - Right Side (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

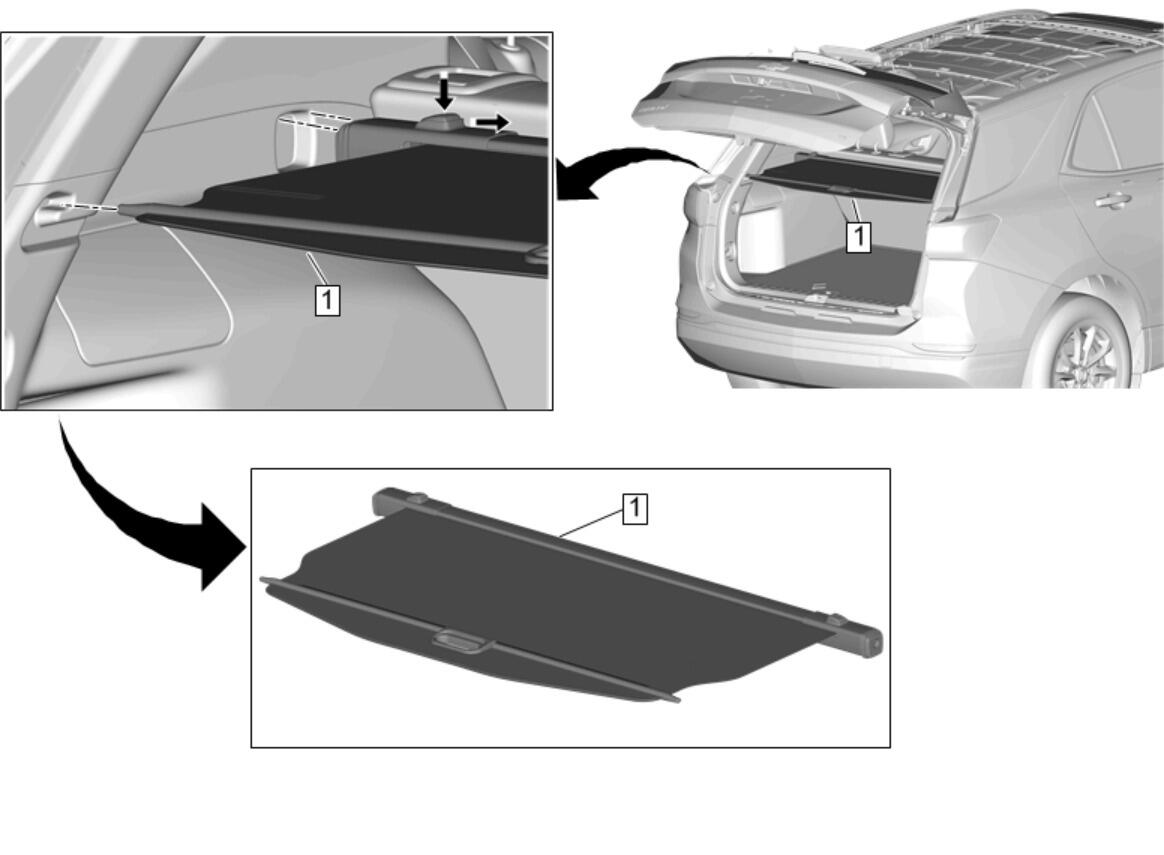

Luggage Shade (1) - Install
Depress lock button on luggage shade, one side at a time, while pulling outward to inosculate integral luggage shade spring from quarter lower rear trim panel.
Rear Seat Back Cushion - Right Side - Install - Rear Seat Back Cushion Removal and Installation (Left Side) , or Rear Seat Back Cushion Removal and Installation (Right Side)
Enable the SIR System. SIR Disabling and Enabling
