Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

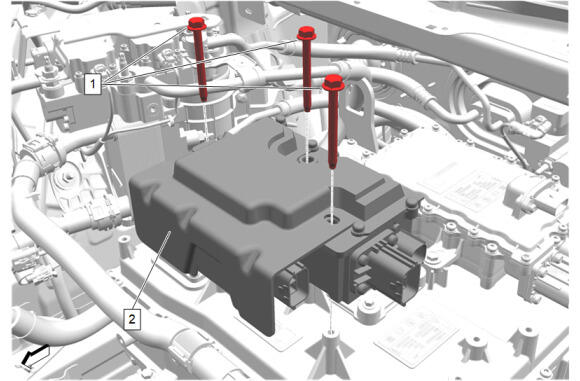

Hybrid/Electric Vehicle Battery Charging Disconnect Module Relay (2) - Install

CAUTION:

Drive Motor Battery Charger Module Relay Bolt (1) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

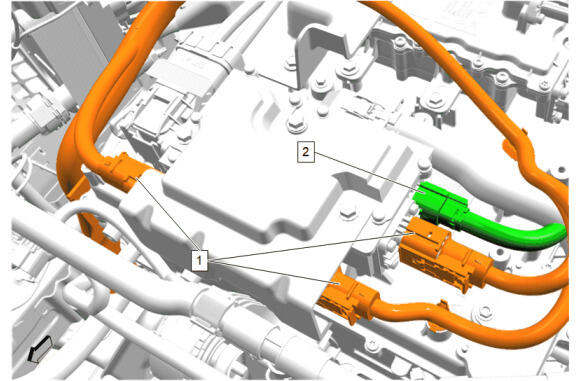

Connect the electrical connector and install the wiring harness retainers as necessary. (2)
Connect the high voltage electrical connector and install the wiring harness retainers as necessary. (1) High Voltage Connectors
Enable the high voltage system. High Voltage Enabling
