Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

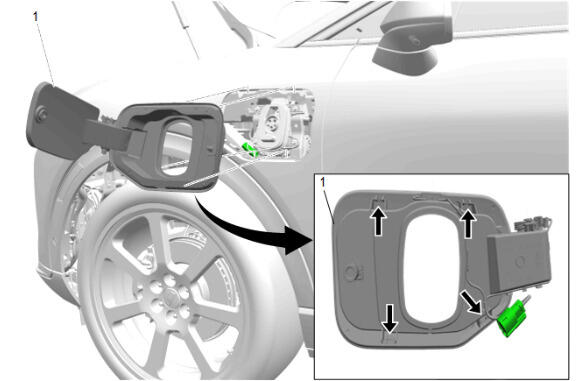

Connect the electrical connector.
Position the charge port housing (1) to the outer side panel.
Press the charge port housing (1) to the outer side panel until fully seated.
Courtesy of GENERAL MOTORS COMPANY

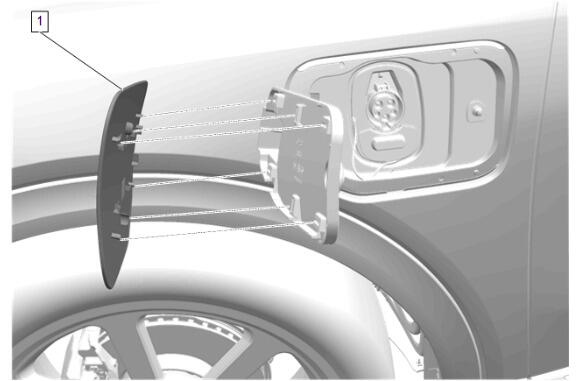

Charge Port Door (1) - Install
Using a 50/50 mixture of isopropyl alcohol and clean drinkable water with a clean towel, remove any left over adhesive residue from the masking tape.
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
