Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

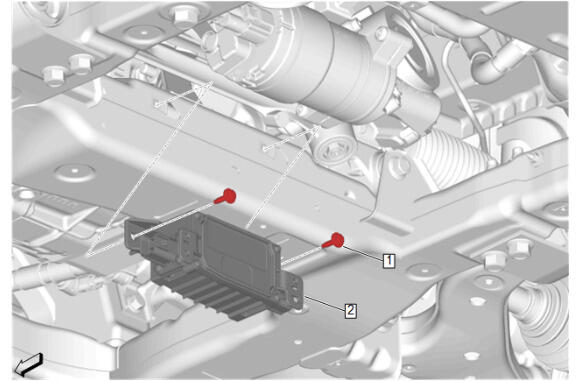

Battery Charger Coupler Fuse Block (2) - Install

CAUTION:

Generator Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

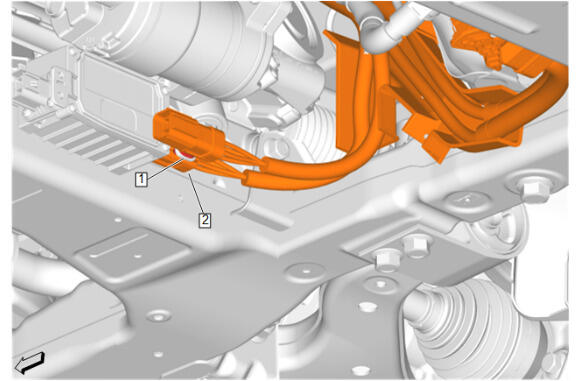

High Voltage Electrical Connector (2) - Connect - High Voltage Connectors
Retainer (1) - Install
Courtesy of GENERAL MOTORS COMPANY

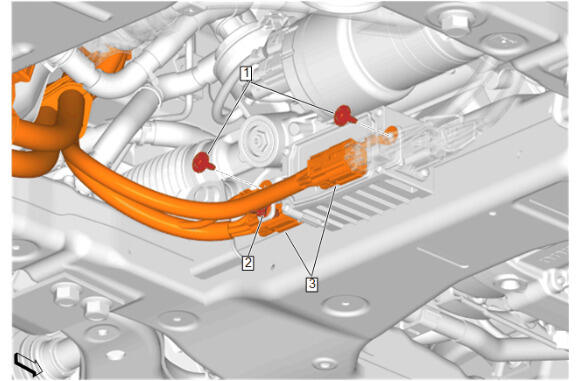

High Voltage Electrical Connector (3) - Connect [2x] - High Voltage Connectors
Retainer (2) - Install
Drive Motor Battery Charger Receptacle Bolt (1) - Install and tighten [2x] - Fastener Specifications
Enable the high voltage system. High Voltage Enabling
