Installation Procedure

  1. GM6300862Courtesy of GENERAL MOTORS COMPANY

    Gear Shift Control Module (2) - Install

    2. CAUTION:

    Fastener Caution .

  2. Automatic Transmission Electronic Control Bolt (1) - Install and tighten [2x] - Fastener Specifications
  3. GM6300861Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect

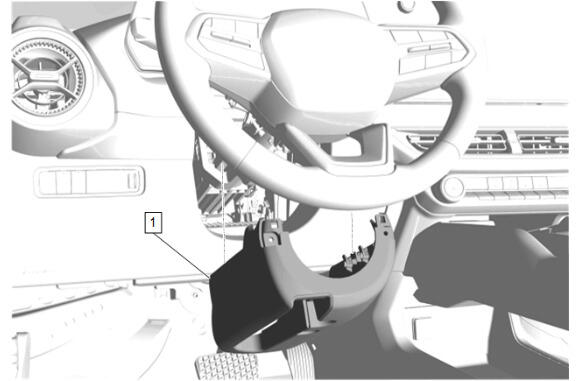

  4. GM6372091Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors and install the wiring harness retainers as necessary.

  5. Instrument Panel Steering Column Lower Trim Cover (1) - Install

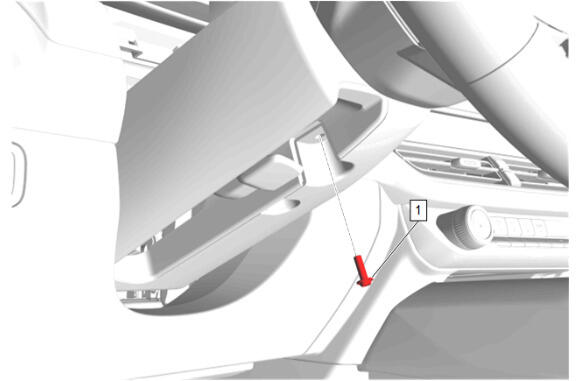

  6. GM6372090Courtesy of GENERAL MOTORS COMPANY

    Ensure the steering wheel is at the centered position.

  7. Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications

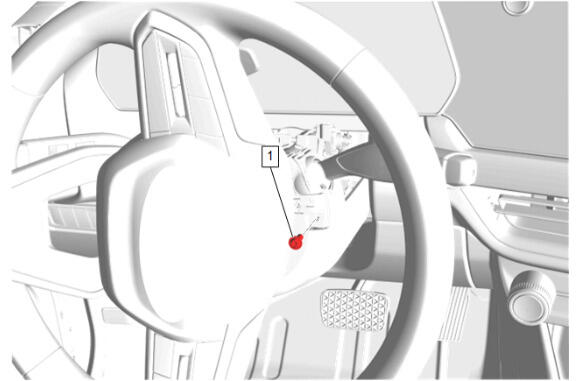

  8. GM6372089Courtesy of GENERAL MOTORS COMPANY

    Turn the steering wheel approximately 90 degrees to the right of the centered position.

  9. Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications

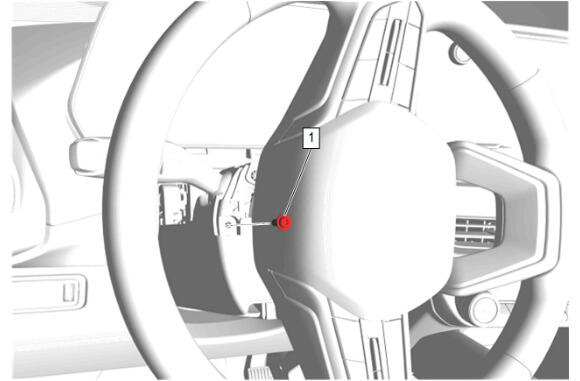

  10. GM6372088Courtesy of GENERAL MOTORS COMPANY

    Turn the steering wheel approximately 90 degrees to the left of the centered position.

  11. Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications
  12. Return the steering wheel to the centered position.

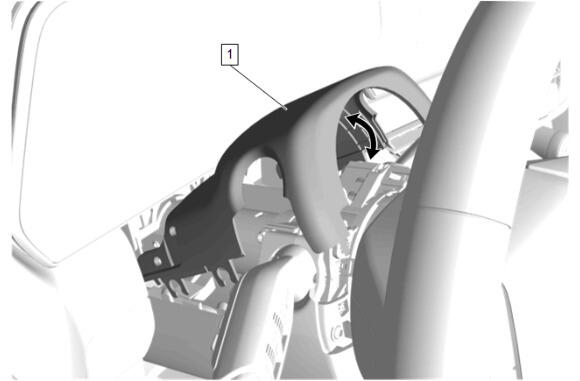

  13. GM6372087Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Steering Column Upper Trim Cover (1) - Install

  14. Return the steering column to its original position.
