Removal Procedure
- Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation
Place match marks on the steering linkage inner tie rod nut (1) and the steering linkage inner tie rod.
- Steering Linkage Inner Tie Rod Nut (1) - Loosen
Steering Linkage Outer Tie Rod Nut (1) - Loosen

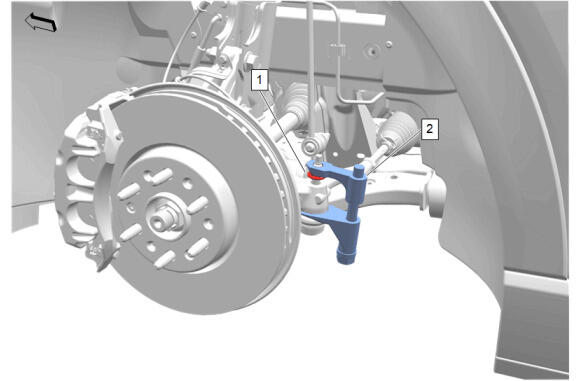

- Using the CH-42188 Ball Joint Separator (2), separate the steering linkage outer tie rod from the steering knuckle.
- Remove the CH-42188 Ball Joint Separator (2) from the steering linkage outer tie rod and the steering knuckle.
Steering Linkage Outer Tie Rod Nut (1) - Remove
Steering Linkage Outer Tie Rod (1) - Remove
Steering Linkage Inner Tie Rod Nut (1) - Remove
Steering Gear Boot Clamp - Outer (1) - Remove

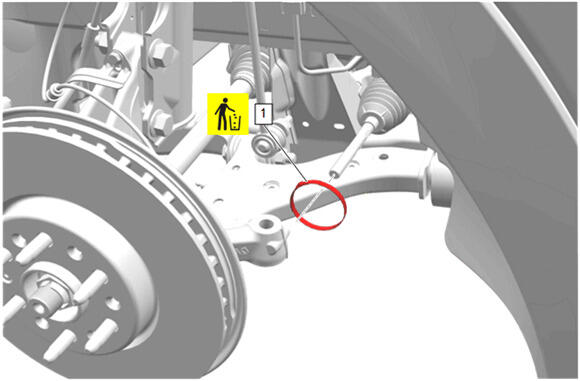

Steering Gear Boot Clamp - Inner (1) - Remove and DISCARD
Steering Gear Boot (1) - Remove
CAUTION:
Do not attempt to disconnect a steering linkage joint by driving a wedge between the joint and the attached part. Seal damage may result which will cause premature failure of the joint.
