Removal Procedure

  1. GM6360913Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console (1) - Remove - Front Floor Console Removal and Installation

  2. GM6366351Courtesy of GENERAL MOTORS COMPANY

    Using a flat bladed plastic trim tool, release the retaining clips.

  3. Front Floor Console Applique - Left Side and Right Side (1) - Remove
  4. GM6366353Courtesy of GENERAL MOTORS COMPANY

    Open the armrest cover.

  5. Using a flat bladed plastic trim tool, release the retaining clips.
  6. Front Floor Console Upper Panel - Left Side (1) - Remove
  7. GM6366355Courtesy of GENERAL MOTORS COMPANY

    Using a flat bladed plastic trim tool, release the retaining clips.

  8. Front Floor Console Upper Panel - Right Side (1) - Remove
  9. GM6367158Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Cup Holder Bolt (1) - Remove [4x]

  10. GM6367160Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Cup Holder Bolt (1) - Remove [4x]

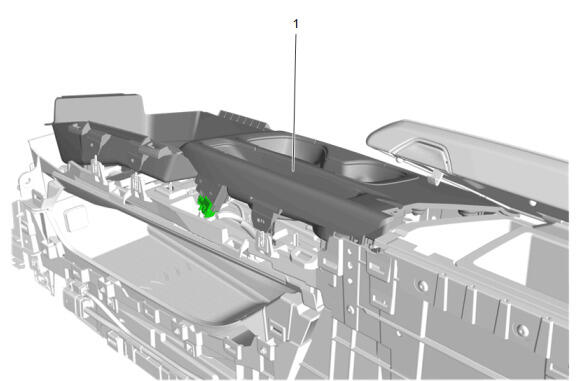

  11. GM6367161Courtesy of GENERAL MOTORS COMPANY

    Using a flat bladed plastic trim tool, release the retaining clips.

  12. Front Floor Console Cup Holder Trim Plate (1) - Reposition
  13. Disconnect the electrical connectors.
  14. GM6367162Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Cup Holder Trim Plate (1) - Remove

  15. GM6367166Courtesy of GENERAL MOTORS COMPANY

    Wireless Charging System Module Bolt (1) - Remove [4x]

  16. Disconnect the electrical connector.
  17. Wireless Accessory Charging Module (2) - Remove
