Installation Procedure

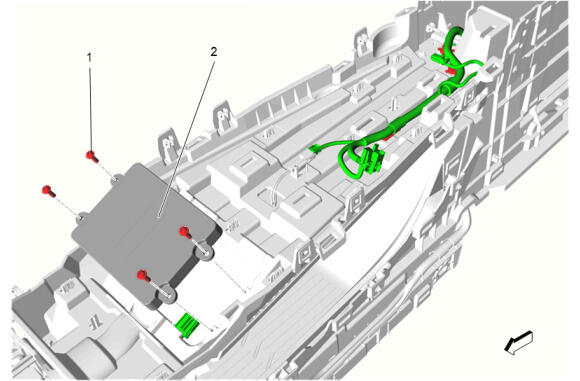

  1. GM6367166Courtesy of GENERAL MOTORS COMPANY

    Wireless Accessory Charging Module (2) - Install

  2. Connect the electrical connector.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Wireless Charging System Module Bolt (1) - Install and tighten [4x] - Fastener Specifications
  4. GM6367162Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  5. Front Floor Console Cup Holder Trim Plate (1) - Install
  6. GM6367160Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Cup Holder Bolt (1) - Install and tighten [4x] - Fastener Specifications

  7. GM6367158Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Cup Holder Bolt (1) - Install and tighten [4x] - Fastener Specifications

  8. GM6366355Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Upper Panel - Right Side (1) - Install

  9. GM6366353Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Upper Panel - Left Side (1) - Install

  10. Close the armrest cover.

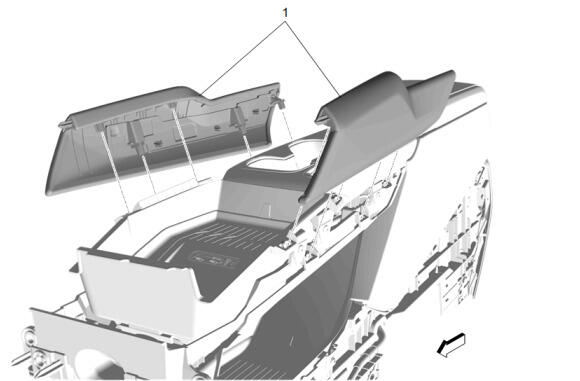

  11. GM6366351Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique - Left Side and Right Side (1) - Install

  12. GM6360913Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console (1) - Install - Front Floor Console Removal and Installation

  13. Perform the necessary programming and setup procedure: Control Module References
