Installation Procedure

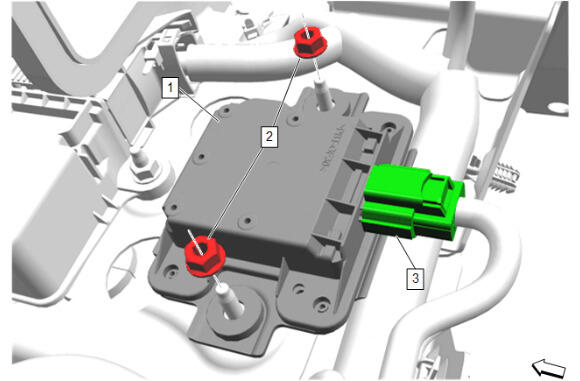

  1. GM6378704Courtesy of GENERAL MOTORS COMPANY

    Vehicle Dynamic Sensor (1) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Vehicle Dynamic Sensor Nut (2) - Install and tighten [2x] - Fastener Specifications
  3. Connect the electrical connector. (3)
  4. GM6360913Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console (1) - Install - Front Floor Console Removal and Installation

  5. Perform the vehicle dynamic sensor offset calibration. Vehicle Dynamic Sensor Offset Calibration
