Installation Procedure

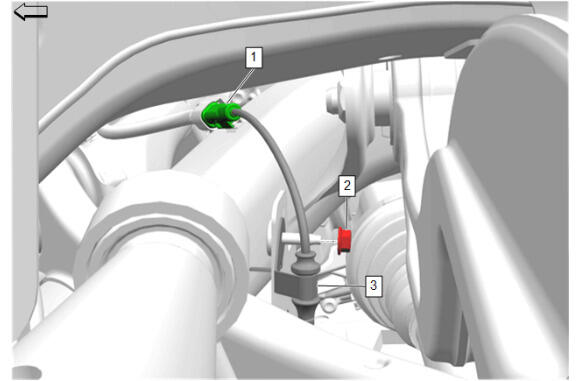

Rear Wheel Speed Sensor (3) - Install
- Connect the electrical connector. (1)
- Install the rear suspension automatic forward lighting leveling position sensor, if equipped.
- Wheel Speed Sensor Bracket Nut (2) - Install and tighten - Fastener Specifications

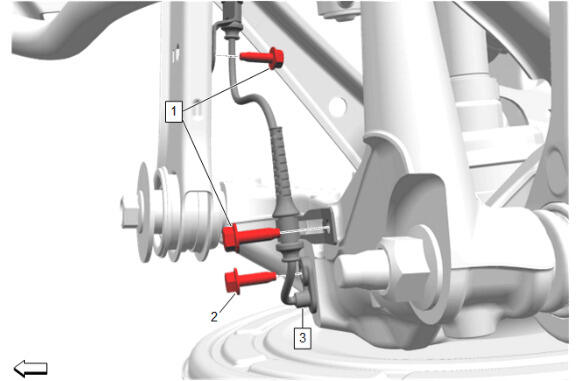

Apply a light coat of wheel speed anti-corrosion grease to the rear wheel speed sensor (3) and mounting pad on the rear suspension knuckle. Adhesives, Fluids, Lubricants, and Sealers
- Rear Wheel Speed Sensor (3) @ Rear Suspension Knuckle - Install
- Rear Wheel Speed Sensor Bolt (2) - Install and tighten - Fastener Specifications
- Rear Wheel Speed Sensor Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
- Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
CAUTION:
Refer to Fastener Caution .
