Installation Procedure

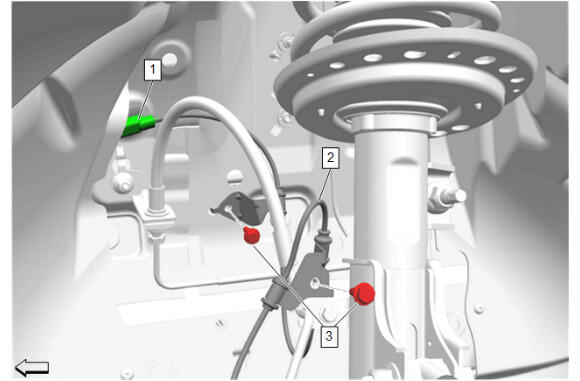

  1. GM6375371Courtesy of GENERAL MOTORS COMPANY

    Front Wheel Speed Sensor (2) - Install

  2. Connect the electrical connector. (1)
    3. CAUTION:

    Refer to Fastener Caution .

  3. Front Wheel Speed Sensor Bracket Bolt (3) - Install and tighten [2x] - Fastener Specifications

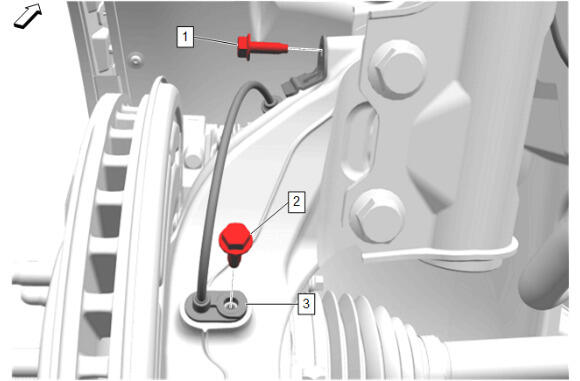

  4. GM6375366Courtesy of GENERAL MOTORS COMPANY

    Apply a light coat of wheel speed anti-corrosion grease to the front wheel speed sensor (2) and mounting pad on the steering knuckle. Adhesives, Fluids, Lubricants, and Sealers

  5. Front Wheel Speed Sensor (3) @ Steering Knuckle - Install
  6. Front Wheel Speed Sensor Bracket Bolt (1) - Install and tighten - Fastener Specifications
  7. Front Wheel Speed Sensor Bolt (2) - Install and tighten - Fastener Specifications
  8. Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
