Fastener Specifications
NOTE:
Callout items in the following chart represent components shown in graphic above.

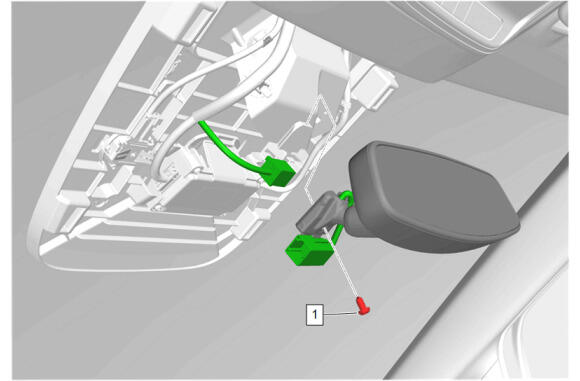

Inside Rearview Mirror
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Inside Rearview Mirror Bolt | - | - | 1.8 N.m (16 lb in) | Inside Rearview Mirror Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.

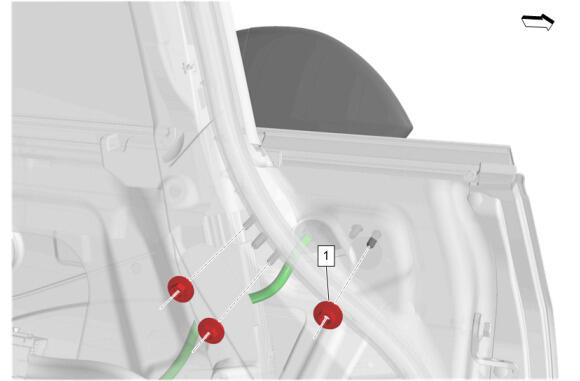

Outside Rearview Mirror
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Outside Rearview Mirror Nut [3x] | - | - | 9 N.m (80 lb in) | Outside Rearview Mirror Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.

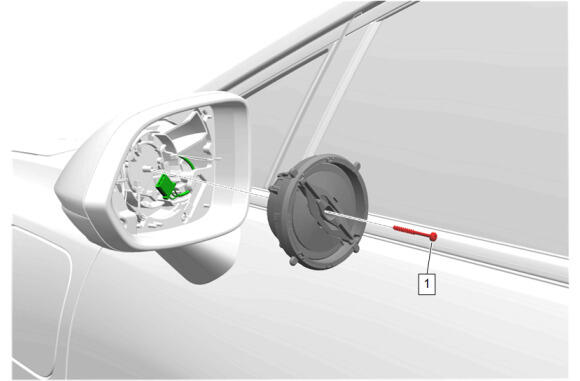

Outside Rearview Mirror Actuator
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Outside Rearview Mirror Actuator Bolt | - | - | 1.3 N.m (12 lb in) | Outside Rearview Mirror Actuator Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.

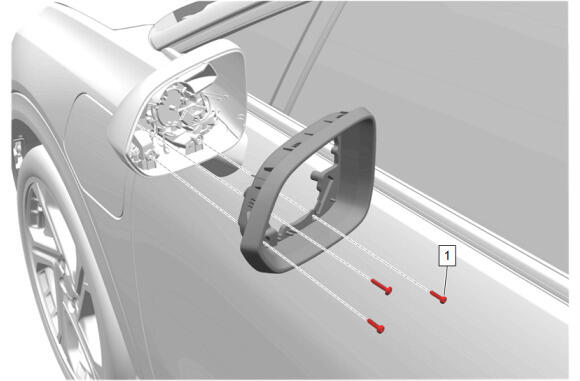

Outside Rearview Mirror Housing
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Outside Rearview Mirror Housing Opening Cover Bolt [3x] | - | - | 2 N.m (18 lb in) | Outside Rearview Mirror Housing Bezel Replacement |
