Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

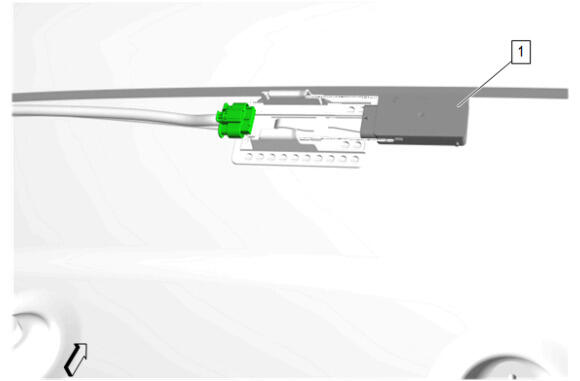

UHF Low Energy Remote Control Access Sensor Transceiver - Position 5 (1) - Install
Secure the retaining tab.
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

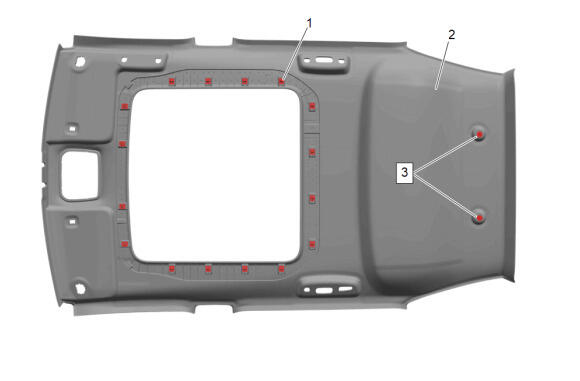

Install the 2 headlining trim panel retainers (3).
Courtesy of GENERAL MOTORS COMPANY

Quarter Window Trim Finish Panel - Left Side and Right Side (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Quarter Window Trim Finish Panel Bolt - Left Side and Right Side (1) - Install and tighten [2x] - Fastener Specifications
Quarter Window Trim Finish Panel Bolt Cap - Left Side and Right Side (2) - Install [2x]
