Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

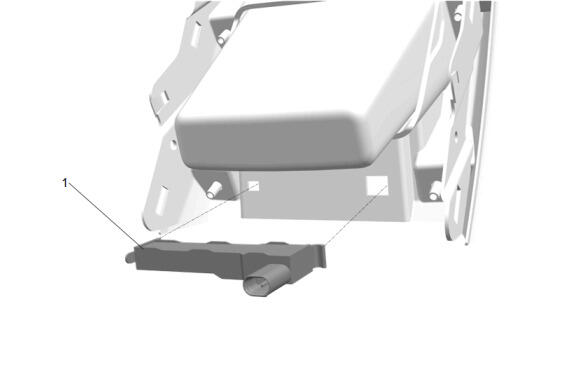

Low Frequency Console Number 2 Antenna (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.

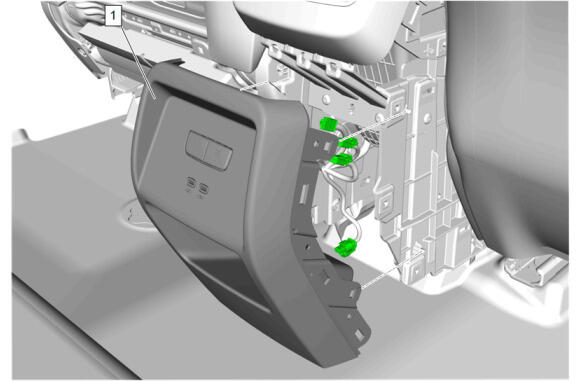

Front Floor Console Rear Trim Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Front Floor Console Rear Cover Bolt (1) - Install and tighten [6x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

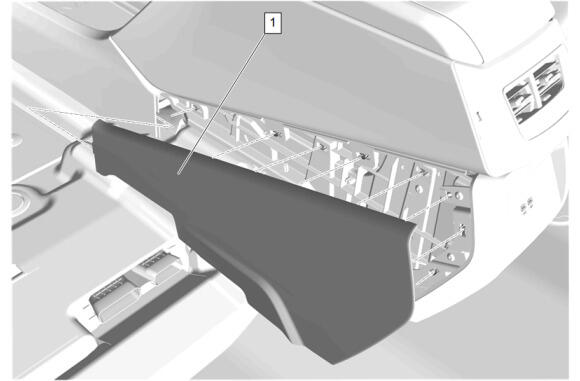

Front Floor Console Side Trim Panel - Left Side and Right Side (1) - Install [2x]
Return the seats to the original position.
