Installation Procedure

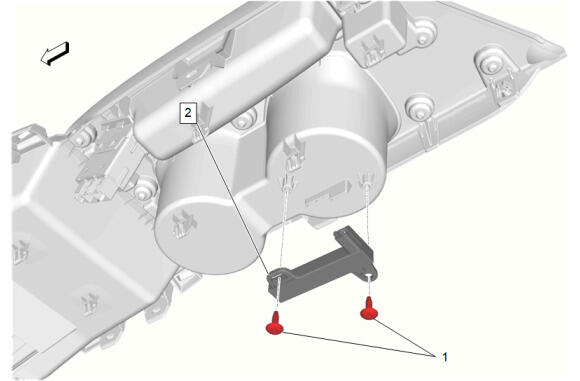

  1. GM6579987Courtesy of GENERAL MOTORS COMPANY

    Low Frequency Console Antenna (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Ignition Lock Key Transmitter Antenna Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications

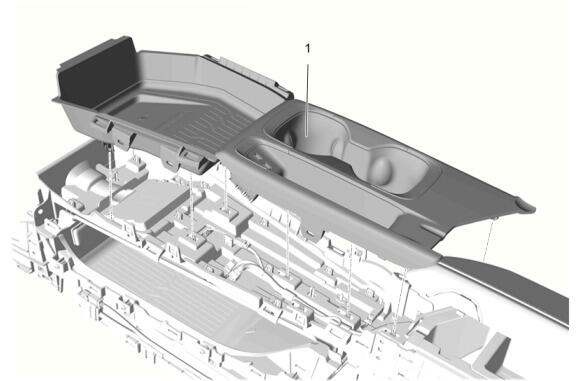

  3. GM6367162Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  4. Front Floor Console Cup Holder Trim Plate (1) - Install

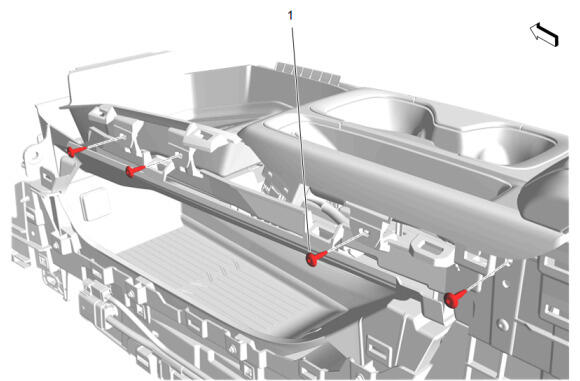

  5. GM6367158Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Cup Holder Bolt (1) - Install and tighten [4x] - Fastener Specifications

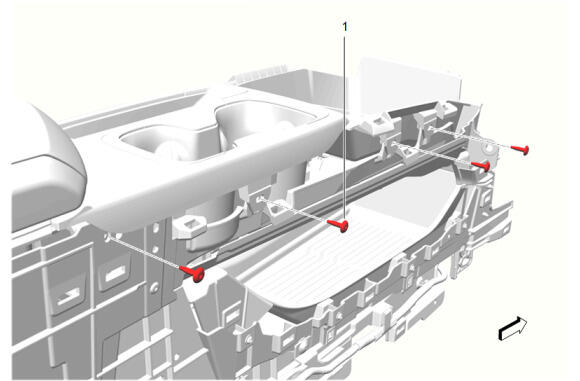

  6. GM6367160Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Cup Holder Bolt (1) - Install and tighten [4x] - Fastener Specifications

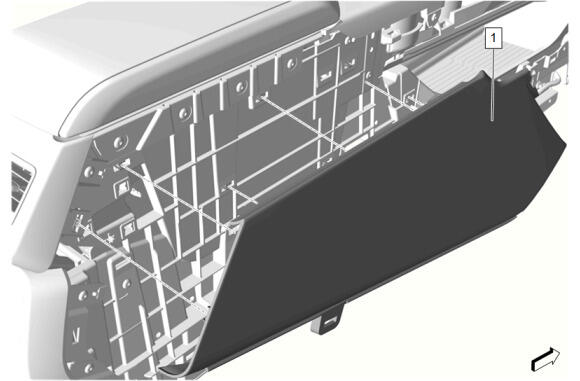

  7. GM6366355Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Upper Panel - Right Side (1) - Install

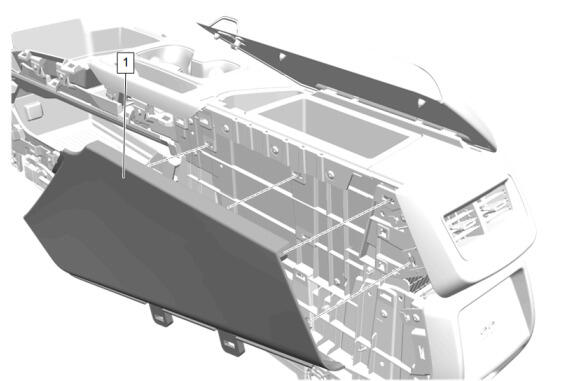

  8. GM6366353Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Upper Panel - Left Side (1) - Install

  9. Close the armrest cover.

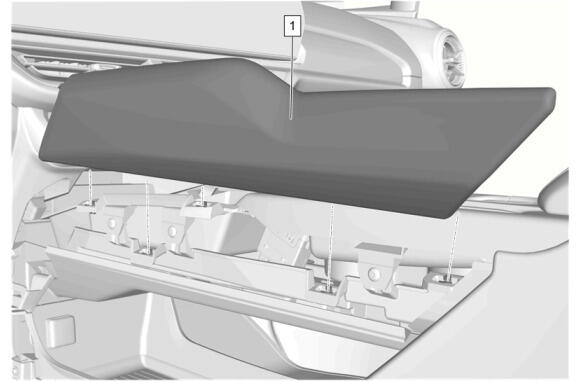

  10. GM6388212Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique - Left Side and Right Side (1) - Install [2x]

  11. GM6360913Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console (1) - Install - Front Floor Console Removal and Installation
