Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

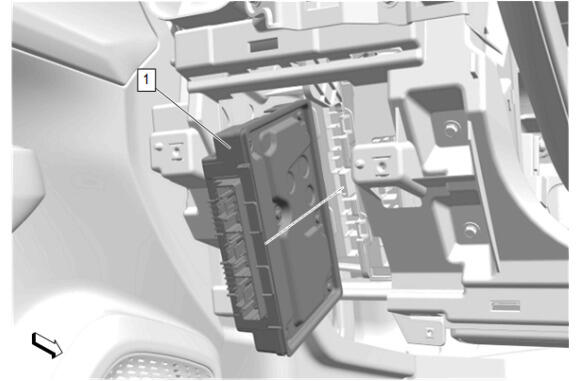

Serial Data Gateway Module (1) - Install

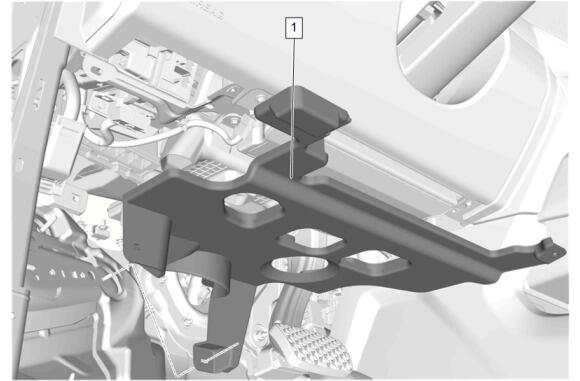

Secure the retaining tab.
Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.

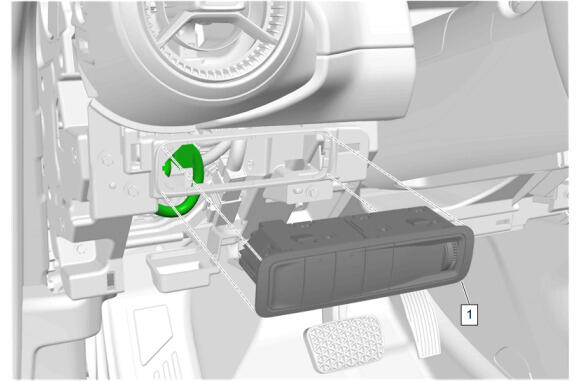

Dimmer Switch (1) - Install
Courtesy of GENERAL MOTORS COMPANY

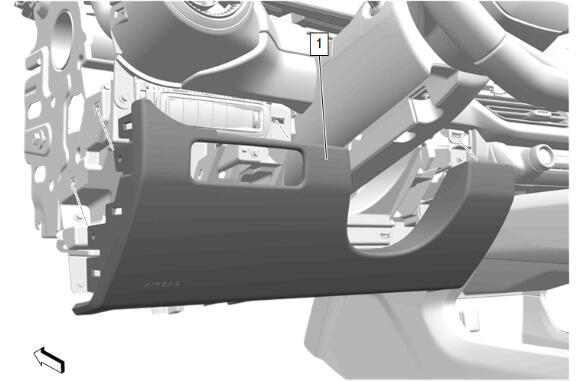

Instrument Panel Lower Trim Panel Insulator - Left Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution

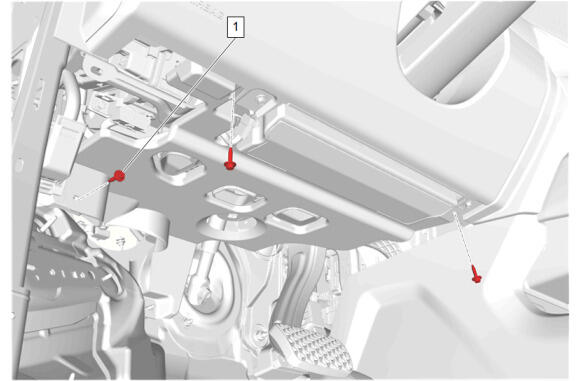

Instrument Panel Lower Trim Panel Insulator Bolt (1) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

WARNING:
When removing, handling or installing this component wear protective gloves. The sharp edges on the component may be very sharp and may cause injury.

Instrument Panel Knee Bolster (1) - Install
Courtesy of GENERAL MOTORS COMPANY

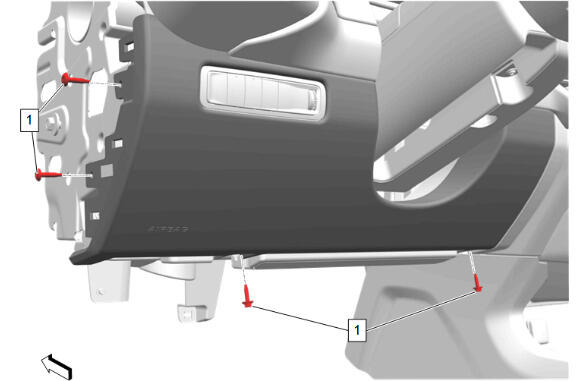

Instrument Panel Knee Bolster Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Reposition the weatherstrip to cover the edge of the trim cover.

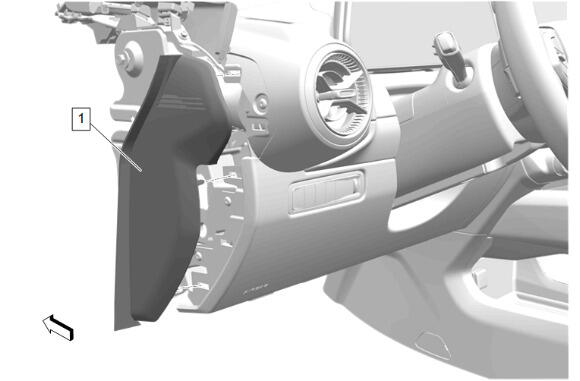

Instrument Panel Outer Trim Cover (1) - Install
Perform the necessary programming and setup procedure: Control Module References
