Fastener Specifications

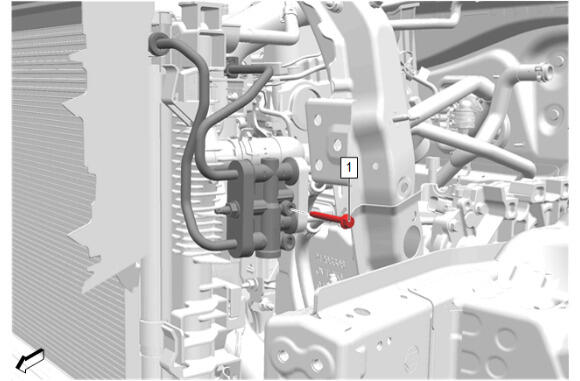

GM6678233Courtesy of GENERAL MOTORS COMPANY
Transmission Fluid Cooler Thermal Bypass Valve

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Cooler Thermal Bypass Valve Bolt - - 6 N.m (53 lb in) Transmission Fluid Cooler Thermal Bypass Valve Replacement
GM6057161Courtesy of GENERAL MOTORS COMPANY
Transmission Fluid Cooler Pipe Connector-Transmission

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Cooler Pipe Connector - - 35 N•m (26 lb ft) Transmission Fluid Cooler Pipe Connector Replacement

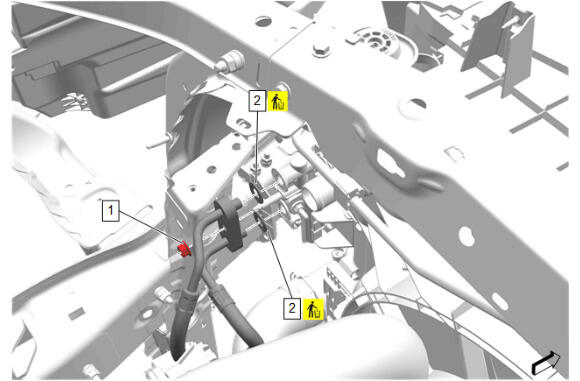

GM6489956Courtesy of GENERAL MOTORS COMPANY
Transmission Fluid Cooler Inlet and Outlet Pipe

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Cooler Pipe Nut - - 22 N•m (195 lb in) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (MGH) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (MRQ)
2 Transmission Fluid Cooler Pipe Seal [2x] Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (MGH) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (MRQ)

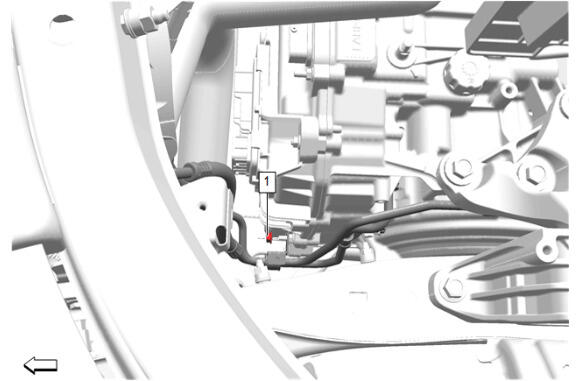

GM6489957Courtesy of GENERAL MOTORS COMPANY
Transmission Fluid Cooler Inlet and Outlet Pipe

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Cooler Pipe Nut - - 22 N•m (195 lb in) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (MGH) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (MRQ)

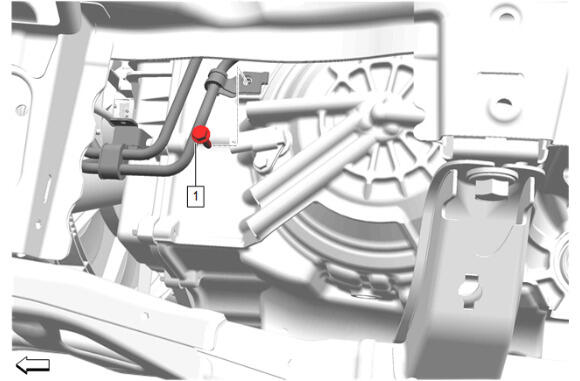

GM6489958Courtesy of GENERAL MOTORS COMPANY
Transmission Fluid Cooler Inlet and Outlet Pipe

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Cooler Pipe Bolt - - 9 N•m (80 lb in) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (MGH) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (MRQ)

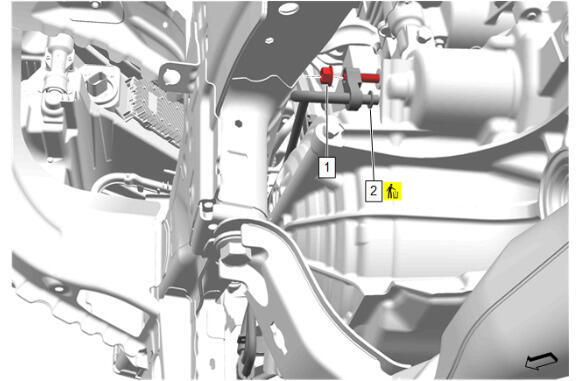

GM6489959Courtesy of GENERAL MOTORS COMPANY
Transmission Fluid Cooler Inlet and Outlet Pipe

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Cooler Pipe Nut - - 22 N•m (195 lb in) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (MGH) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (MRQ)
2 Transmission Fluid Cooler Pipe Seal [2x] Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (MGH) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (MRQ)

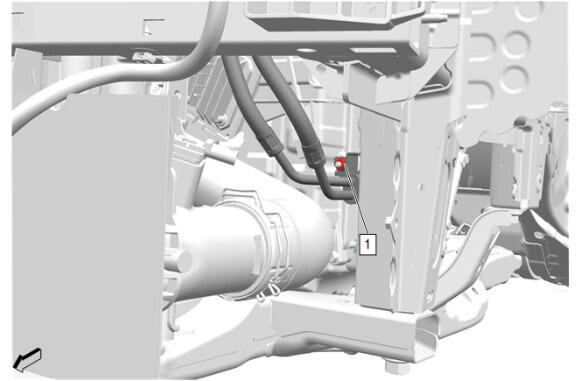

GM6486070Courtesy of GENERAL MOTORS COMPANY
Transmission Fluid Cooler Inlet and Outlet Pipe

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Cooler Pipe Nut - - 9 N•m (80 lb in) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (MGH) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (MRQ)

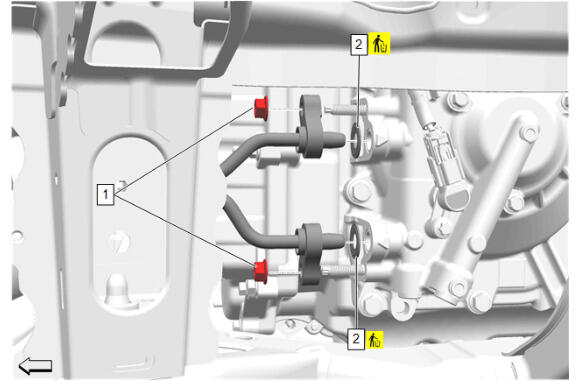

GM6489982Courtesy of GENERAL MOTORS COMPANY
Transmission Fluid Cooler Inlet and Outlet Pipe

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Transmission Fluid Cooler Pipe Nut [2x] - - 22 N•m (195 lb in) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (MGH) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (MRQ)
2 Transmission Fluid Cooler Pipe Seal [2x] Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (MGH) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (MRQ)
