Installation Procedure

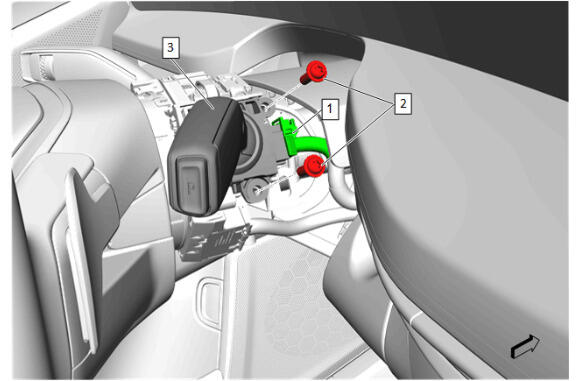

  1. GM6057861Courtesy of GENERAL MOTORS COMPANY

    Gear Shift Control Module (3) - Install

    2. CAUTION:

    Fastener Caution

  2. Automatic Transmission Electronic Control Bolt (2) - Install and tighten [2x] - Fastener Specifications
  3. Electrical Connector (1) - Connect

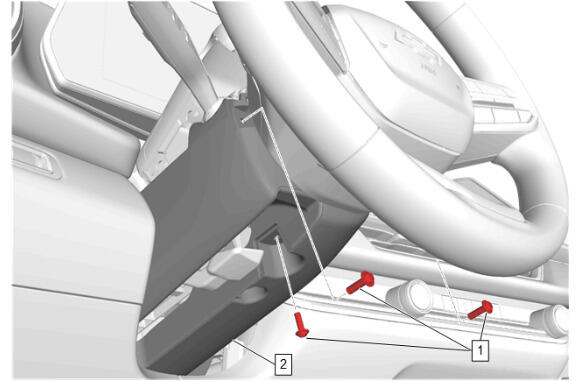

  4. GM6432638Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Steering Column Lower Trim Cover (2) - Install

  5. Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten [3x] - Fastener Specifications

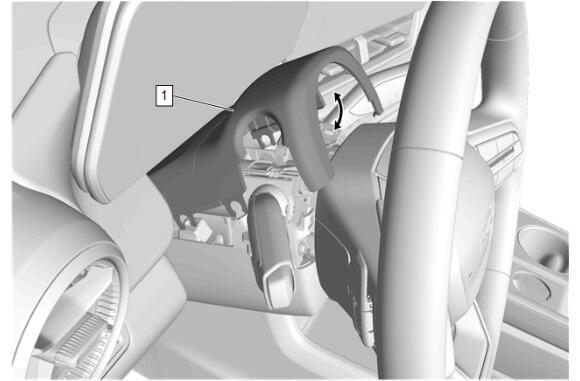

  6. GM6432640Courtesy of GENERAL MOTORS COMPANY

    Secure the instrument panel steering column opening closeout (1) to the instrument panel steering column lower trim cover.
