Removal Procedure

  1. GM6425313Courtesy of GENERAL MOTORS COMPANY

    Release the retaining tab.

  2. Disconnect the electrical connector.
  3. Front Floor Console Trim Plate Assembly (1) - Remove

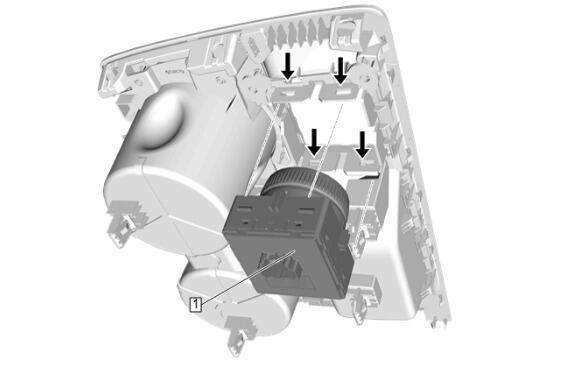

  4. GM6425314Courtesy of GENERAL MOTORS COMPANY

    Release the retaining tab.

  5. Ride Control Switch (1) - Remove
