Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

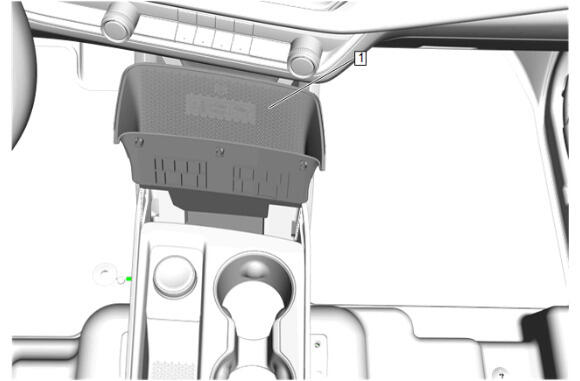

Using a flat - bladed plastic trim tool, release the Liner.
Front Floor Console Variable 1 Liner (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

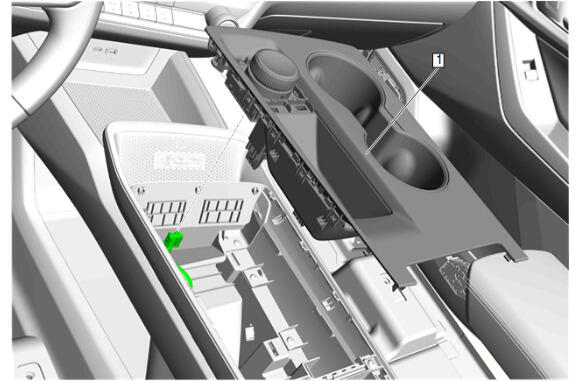

Using a flat - bladed plastic trim tool, release the retaining clips.
Disconnect the electrical connector.
Front Floor Console Trim Plate Assembly (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

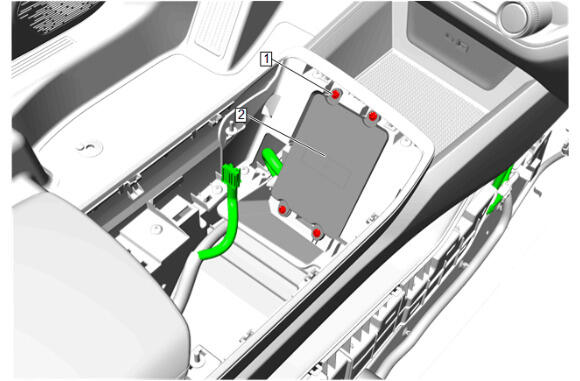

Wireless Charging System Module Bolt (1) - Remove [4x]
Disconnect the electrical connector.
Wireless Charging System Module (2) - Remove
