Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

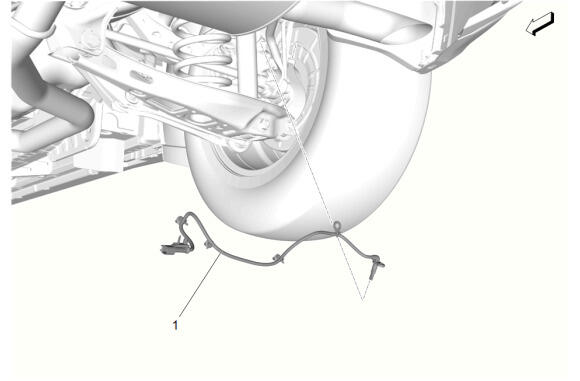

Rear Wheel Speed Sensor (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

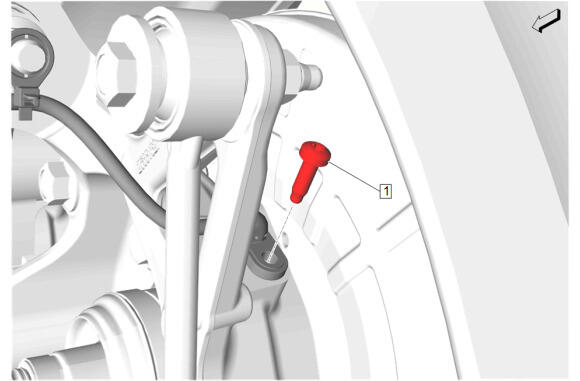

Rear Wheel Speed Sensor Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

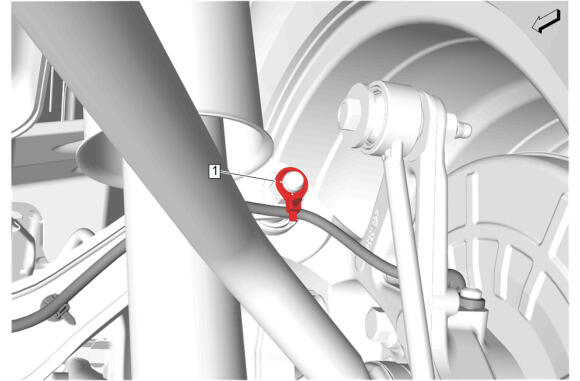

Wiring Harness Retainer (1) - Secure
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

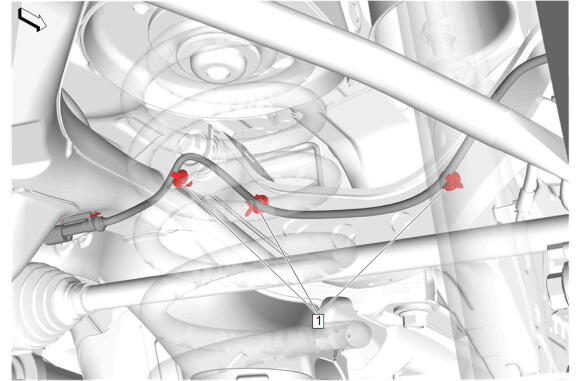

Wiring Harness Retainer (1) - Secure [3x]
Courtesy of GENERAL MOTORS COMPANY

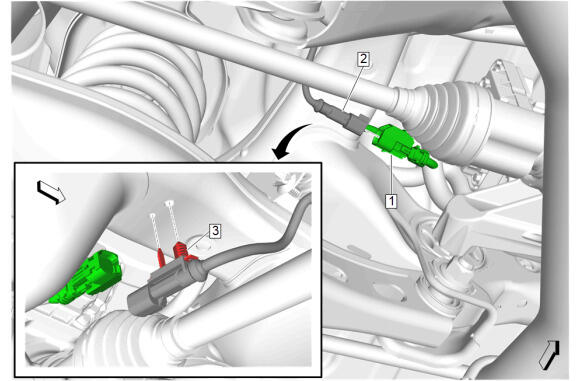

Wiring Harness Retainer (3) @ Rear Suspension Cradle - Secure
Electrical Connector (1) @ Rear Wheel Speed Sensor (2) - Connect
Remove the support and lower the vehicle. Lifting and Jacking the Vehicle
Perform the diagnostic system check. Diagnostic System Check - Vehicle
