Installation Procedure
- Apply a light coat of wheel speed anti-corrosion grease to the front wheel speed sensor (1) and mounting pad on the steering knuckle. Adhesives, Fluids, Lubricants, and Sealers

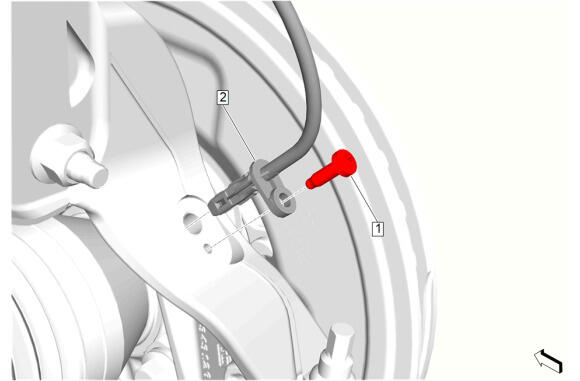

Front Wheel Speed Sensor (2) - Install
- Front Wheel Speed Sensor Bolt (1) - Install and tighten - Fastener Specifications

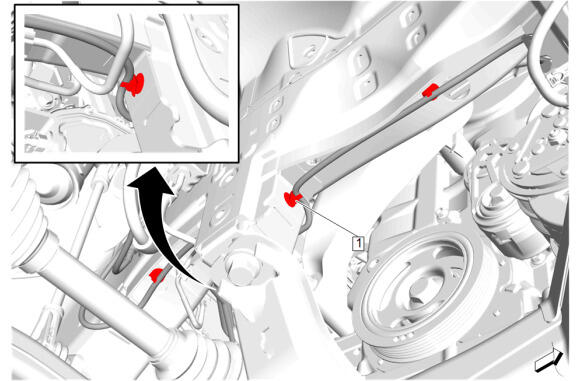

Wiring Harness Retainer (1) - Install [4x]

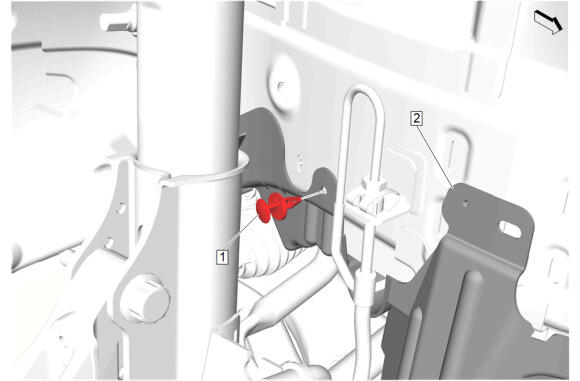

Front Wheelhouse Splash Shield (2) - Install
- Front Wheelhouse Splash Shield Retainer (1) - Install

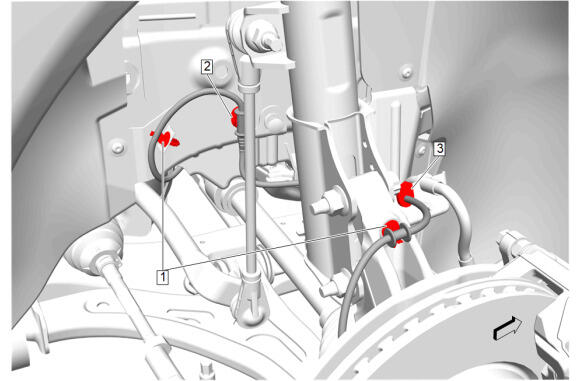

Wiring Harness Grommet (3) - Install
- Wiring Harness Retainer (2) - Install
- Wiring Harness Retainer (1) - Install [2x]

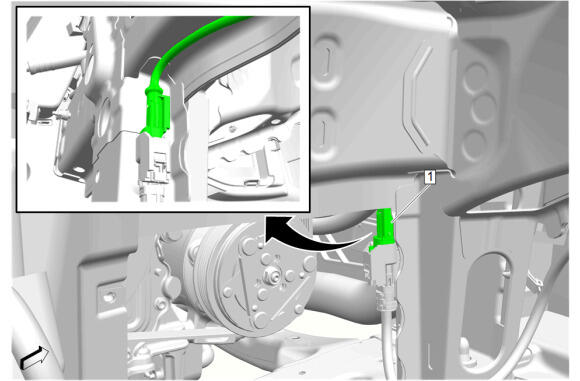

Electrical Connector (1) - Connect
- Front Wheelhouse Liner - Install - Front Wheelhouse Liner Replacement - Right Side
- Perform the diagnostic system check. Diagnostic System Check - Vehicle
CAUTION:
Refer to Fastener Caution .
