Installation Procedure
Apply a light coat of wheel speed anti-corrosion grease to the front wheel speed sensor (2) and mounting pad on the steering knuckle. Adhesives, Fluids, Lubricants, and Sealers

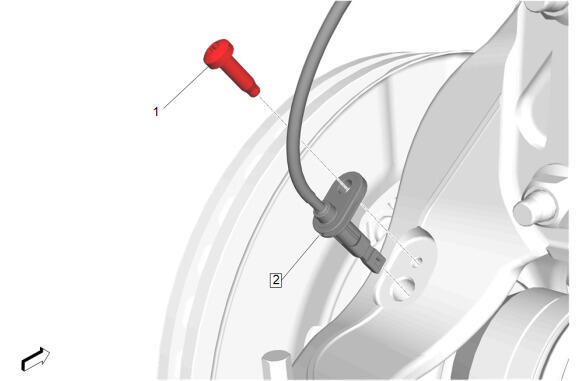

- Front Wheel Speed Sensor (2) - Install
- Front Wheel Speed Sensor Bolt (1) - Install and tighten - Fastener Specifications

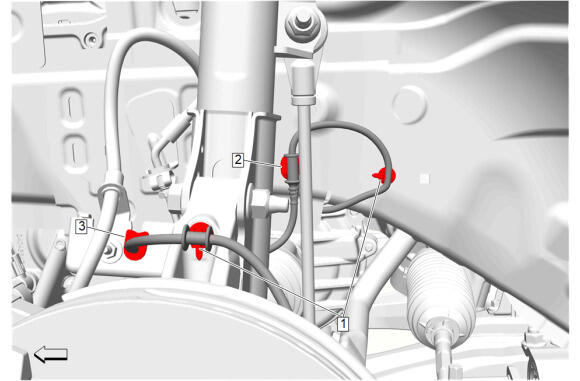

Wiring Harness Grommet (3) - Install

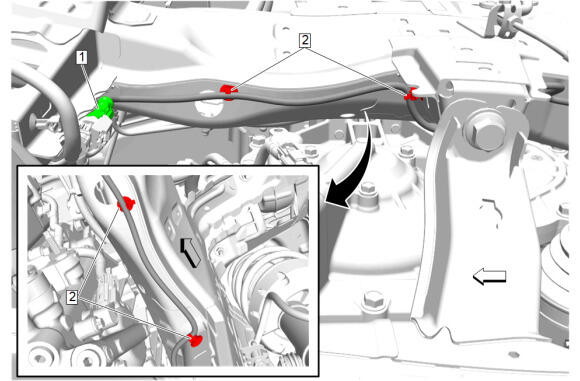

- Wiring Harness Retainer (2) - Install

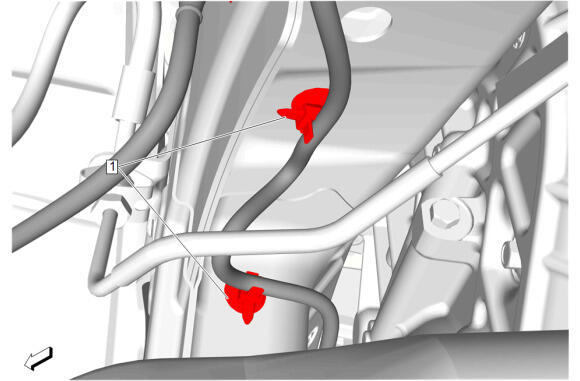

- Wiring Harness Retainer (1) - Install [2x]
Wiring Harness Retainer (1) - Install [2x]
Wiring Harness Retainer (2) - Install [2x]

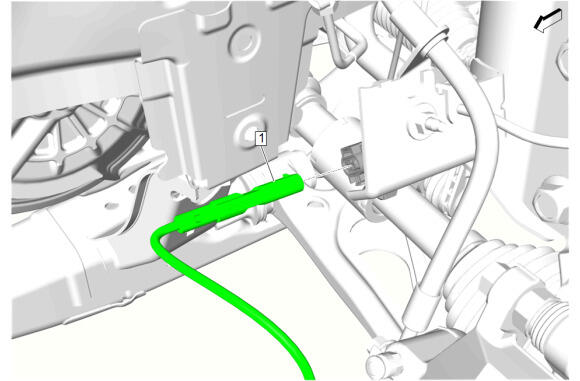

- Electrical Connector (1) - Connect

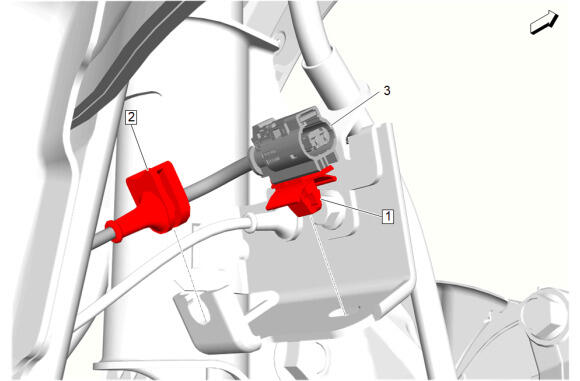

{ If equipped } Wiring Harness Grommet (2) - Install
- { If equipped } Wiring Harness Retainer (1) - Install
{ If equipped } Front Disc Brake Pad Wear Sensor (1) - Connect
- Front Wheelhouse Liner - Install - Front Wheelhouse Liner Replacement - Left Side
- Perform the diagnostic system check. Diagnostic System Check - Vehicle
CAUTION:
Refer to Fastener Caution .
