Fastener Specifications

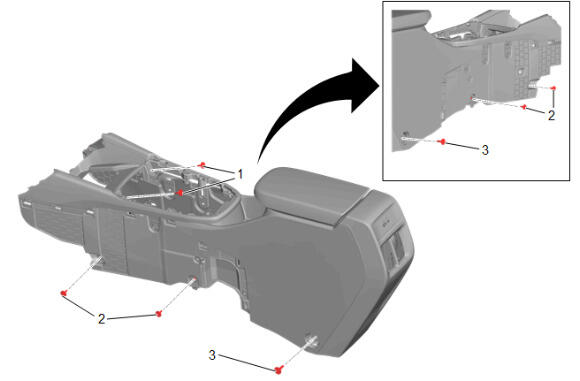

GM5948892Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Assembly

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Storage Tray Bolt [2x] - - 2.5 N.m (22 lb in) Front Floor Console Removal and Installation
2 Front Floor Lower Console Bolt [4x] - - 2.5 N.m (22 lb in) Front Floor Console Removal and Installation
3 Rear Floor Console Bolt [2x] - - 9 N.m (80 lb in) Front Floor Console Removal and Installation

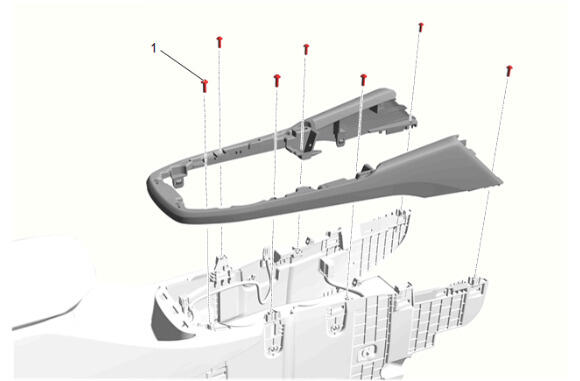

GM5948890Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Applique

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Applique Bolt [7x] - - 2.5 N.m (22 lb in) Front Floor Console Applique Replacement

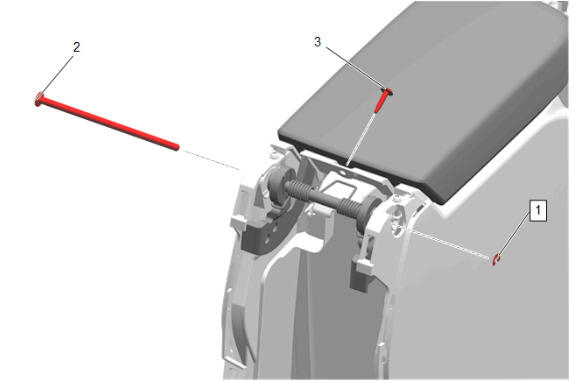

GM5948891Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Armrest, Front Floor Console Rear Trim Panel

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Armrest Hinge Clip - - - Front Floor Console Armrest Replacement
2 Front Floor Console Armrest Pivot Pin - - - Front Floor Console Armrest Replacement
3 Front Floor Console Rear Trim Panel Bolt - - 2.5 N.m (22 lb in) Front Floor Console Rear Trim Panel Replacement

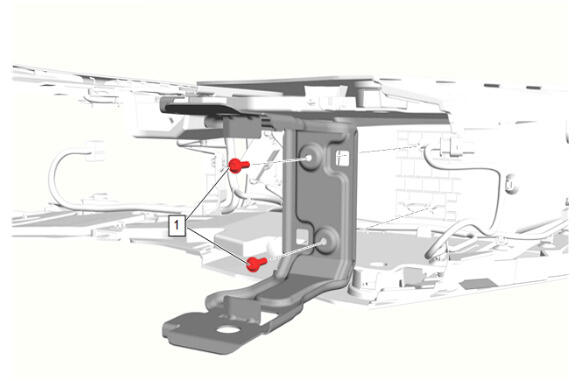

GM5948888Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Bracket Bolt [2x] - - 0.85 N.m (8 lb in) Front Floor Console Bracket Replacement

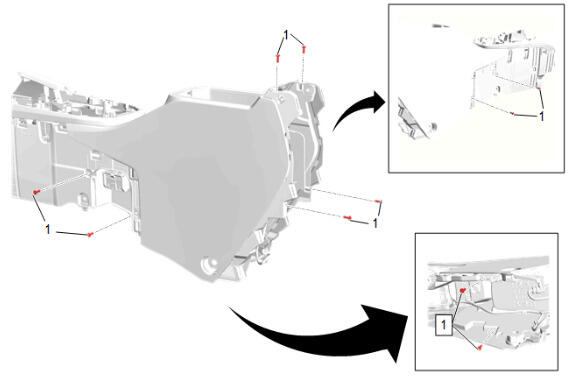

GM5948889Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Compartment

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Compartment Bolt [10x] - - 0.85 N.m (8 lb in) Front Floor Console Compartment Replacement

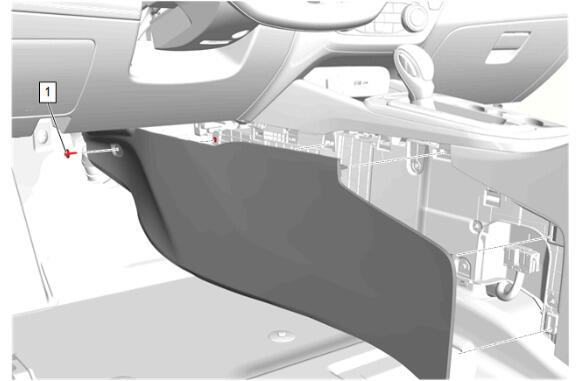

GM5948887Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Extension Panel

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Extension Bolt - - 2.5 N.m (22 lb in) Front Floor Console Extension Panel Replacement - Left Side

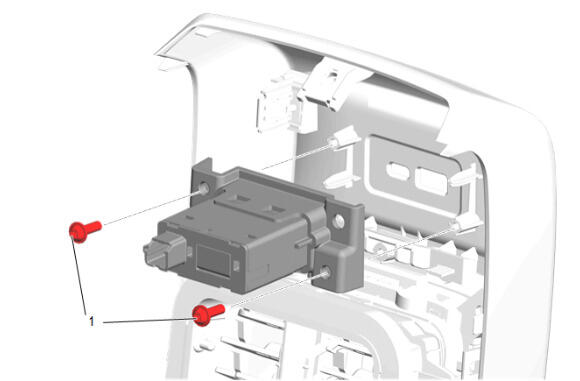

GM5992529Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Rear Trim Panel

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Audio Player and USB Receptacle Bracket Bolt [2x] - - 2.5 N.m (22 lb in) Front Floor Console Rear Trim Panel Replacement
GM6154998Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Stowage Tray

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Storage Tray Bolt [2x] - - 2.5 N.m (22 lb in) Front Floor Console Stowage Tray Replacement (K4C) , or Front Floor Console Stowage Tray Replacement (- K4C)

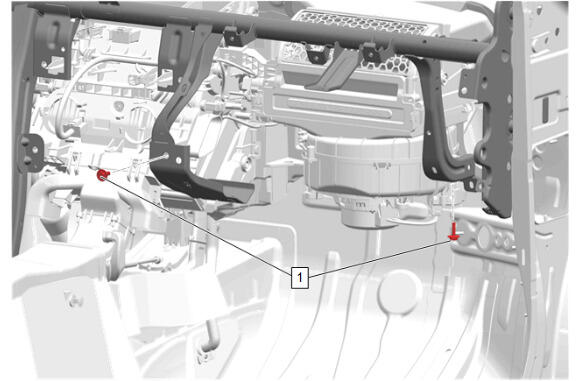

GM5948885Courtesy of GENERAL MOTORS COMPANY
Heater and Air Conditioning Evaporator and Blower Module

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Heater and Air Conditioning Evaporator and Blower Module Bolt [2x] - - 5 N.m (44 lb in) Instrument Panel Tie Bar Replacement

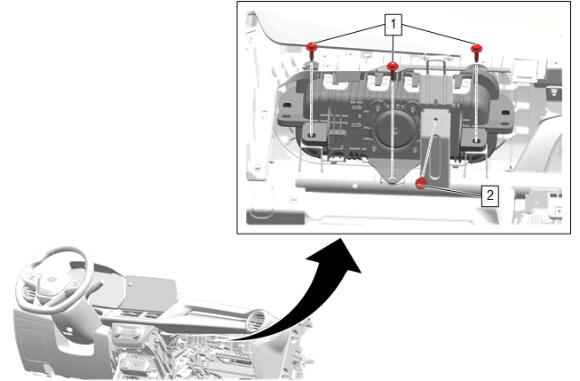

GM5948869Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Airbag

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Airbag Bolt [3x] - - 9 N.m (80 lb in) Instrument Panel Assembly Replacement (URO) , or Instrument Panel Assembly Replacement (UDC)
2 Instrument Panel Compartment Door Latch Striker Bolt - - 9 N.m (80 lb in) Instrument Panel Assembly Replacement (URO) , or Instrument Panel Assembly Replacement (UDC)

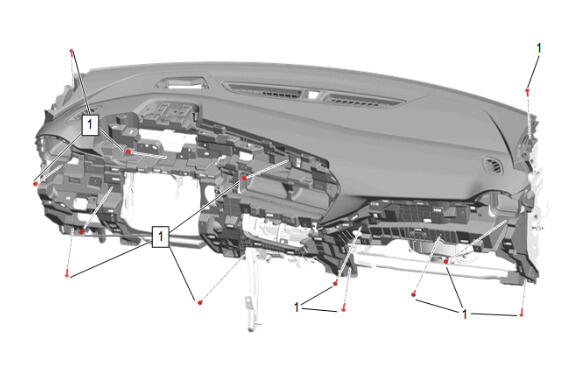

GM6200965Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Assembly

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Bolt [13x] - - 2.5 N.m (22 lb in) Instrument Panel Assembly Replacement (URO) , or Instrument Panel Assembly Replacement (UDC)

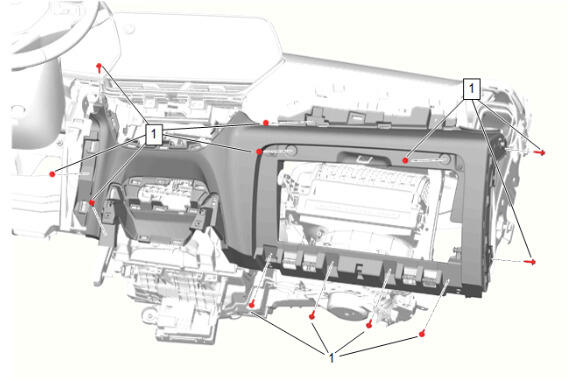

GM6200966Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Compartment

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Compartment Bolt [12x] - - 2.5 N.m (22 lb in) Instrument Panel Compartment Replacement (URO) , or Instrument Panel Compartment Replacement (UDC)

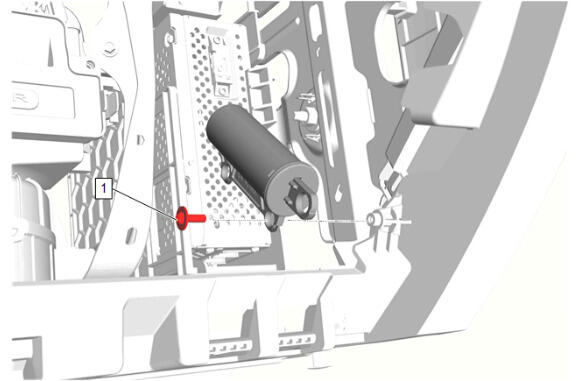

GM5950123Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Compartment Door Dampener

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Compartment Door Dampener Bolt - - 1.3 N.m (12 lb in) Instrument Panel Compartment Door Dampener Replacement

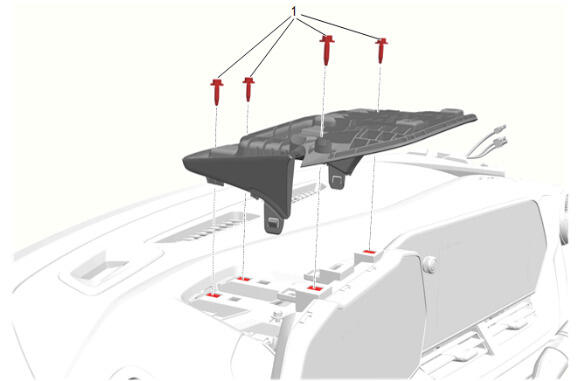

GM5948856Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Instrument Cluster Hood

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Trim Plate Strap Bolt [4x] - - 2.5 N.m (22 lb in) Instrument Panel Instrument Cluster Hood Replacement (URO) , or Instrument Panel Instrument Cluster Hood Replacement (UDC)

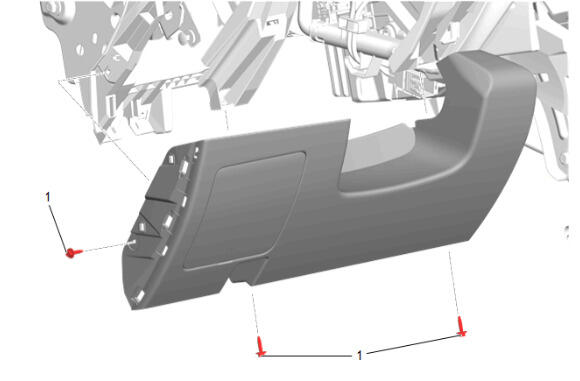

GM5948853Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Knee Bolster

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Knee Bolster Bolt [3x] - - 2.5 N.m (22 lb in) Instrument Panel Knee Bolster Replacement

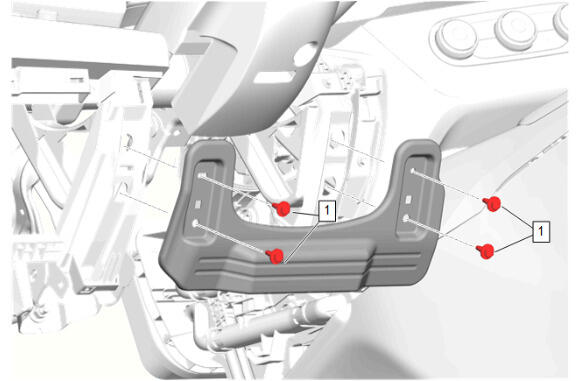

GM6181110Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Knee Bolster Deflector

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Knee Bolster Bracket Bolt [4x] - - 9 N.m (80 lb in) Instrument Panel Knee Bolster Deflector Replacement

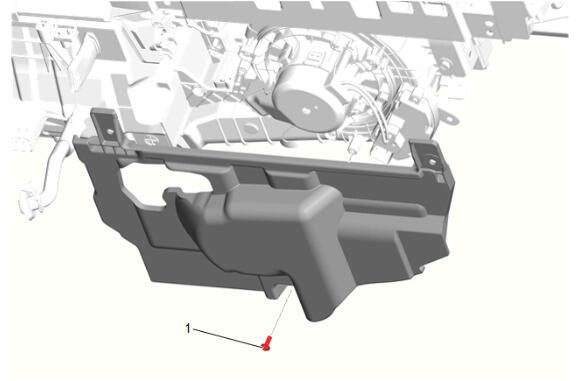

GM5948861Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Lower Trim Panel Insulator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Lower Trim Panel Insulator Bolt - - 1.5 N.m (13 lb in) Instrument Panel Lower Trim Panel Insulator Replacement

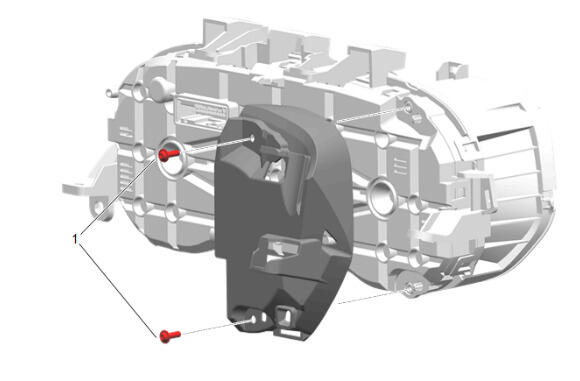

GM6169290Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Upper Trim Panel Cover

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Upper Trim Panel Cover Bolt [2x] - - 1.5 N.m (13 lb in) Instrument Panel Upper Trim Panel Cover Replacement (UDC)

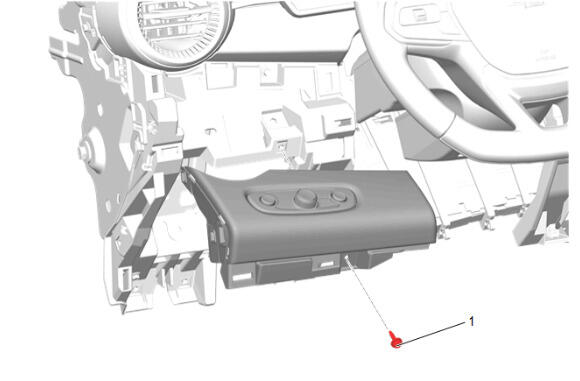

GM5948854Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Switch Trim Plate

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Switch Trim Plate Bolt - - 2.5 N.m (22 lb in) Instrument Panel Switch Trim Plate Replacement

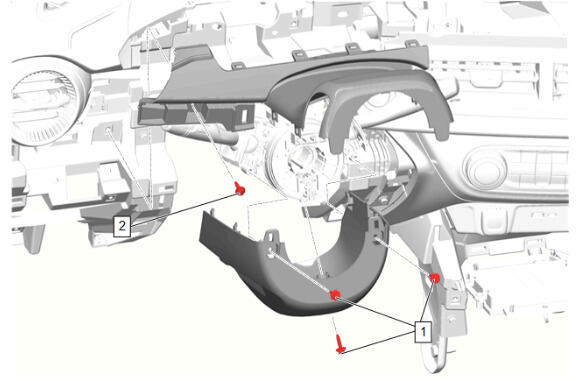

GM5948866Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Steering Column Trim Cover

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Steering Column Lower Trim Cover Bolt [3x] - - 2.5 N.m (22 lb in) Instrument Panel Steering Column Lower Trim Cover Replacement
2 Instrument Panel Trim Plate Applique Bolt - - 2.5 N.m (22 lb in) Instrument Panel Trim Plate Applique Replacement - Left Side

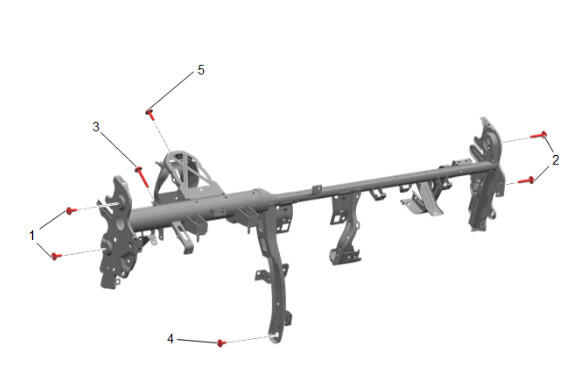

GM5948879Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Tie Bar

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Tie Bar Bolt - Left Side @ Body Hinge Pillar Inner Panel [2x] - - 22 N.m (16 lb ft) Instrument Panel Tie Bar Replacement
2 Instrument Panel Tie Bar Bolt - Right Side @ Body Hinge Pillar Inner Panel [2x] - - 22 N.m (16 lb ft) Instrument Panel Tie Bar Replacement
3 Instrument Panel Tie Bar Bolt @ Brake Master Cylinder - - 22 N.m (16 lb ft) Instrument Panel Tie Bar Replacement
4 Instrument Panel Tie Bar Bolt @ Plenum Lower Panel - - 22 N.m (16 lb ft) Instrument Panel Tie Bar Replacement
5 Instrument Panel Tie Bar Bolt @ Instrument Panel Tie Bar Brace - - 22 N.m (16 lb ft) Instrument Panel Tie Bar Replacement

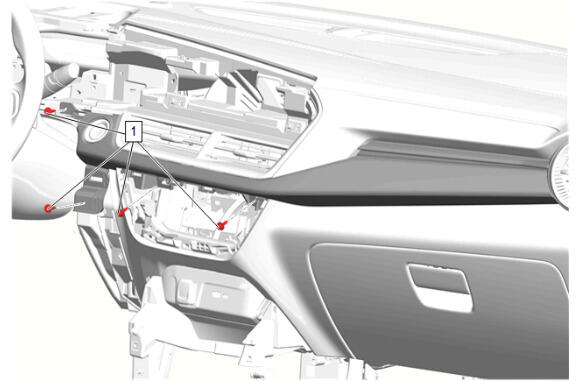

GM5948857Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Trim Plate Applique

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Trim Plate Applique Bolt [4x] - - 2.5 N.m (22 lb in) Instrument Panel Trim Plate Applique Replacement - Right Side (URO) , or Instrument Panel Trim Plate Applique Replacement - Right Side (UDC)

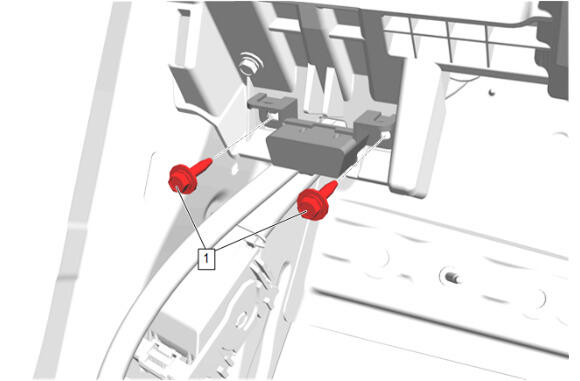

GM5948864Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Wiring Harness Connector

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Wiring Harness Connector Bolt [2x] - - 2.5 N.m (22 lb in) Instrument Panel Assembly Replacement (URO) , or Instrument Panel Assembly Replacement (UDC)

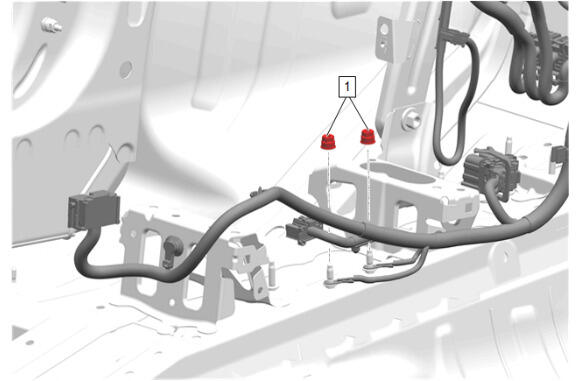

GM5948881Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Wiring Harness Ground

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Wiring Harness Ground Nut [2x] - - 9 N.m (80 lb in) Instrument Panel Tie Bar Replacement
