Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

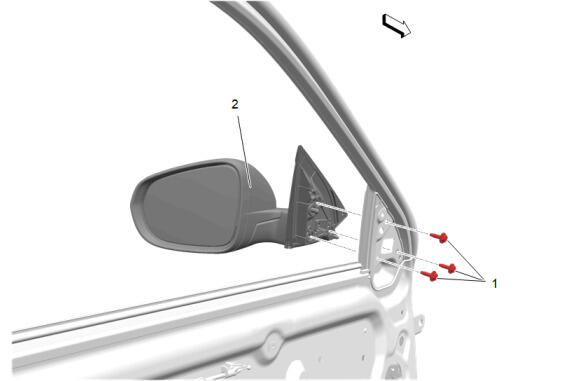

Outside Rearview Mirror (2) - Install
Connect the electrical connector.

CAUTION:

Refer to Fastener Caution .

Outside Rearview Mirror Bolt (1) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

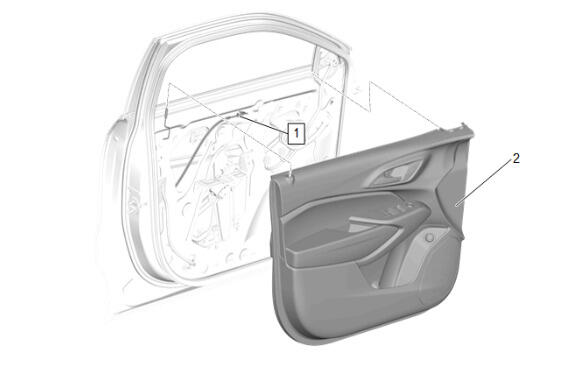

Front Side Door Trim (2) - Install - Front Side Door Trim Removal and Installation
