Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

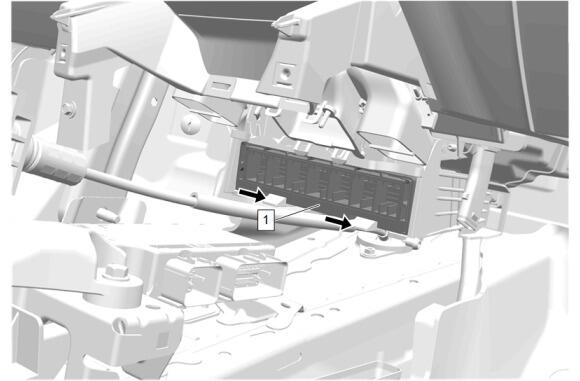

Body Control Module (1) @ Body Control Module Bracket - Install
Secure the retaining tabs.
Courtesy of GENERAL MOTORS COMPANY

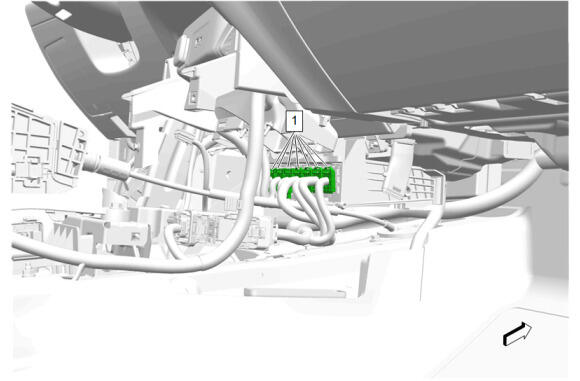

Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

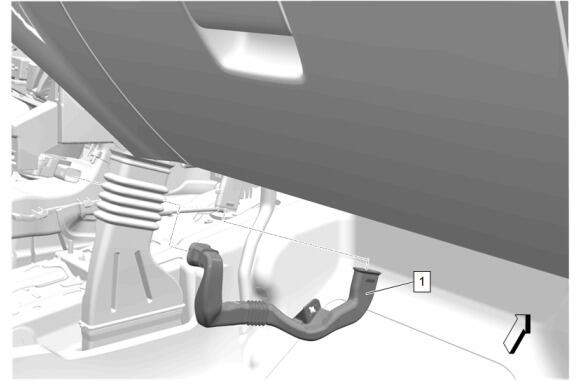

Instrument Panel Compartment Air Duct (1) - Install
Courtesy of GENERAL MOTORS COMPANY

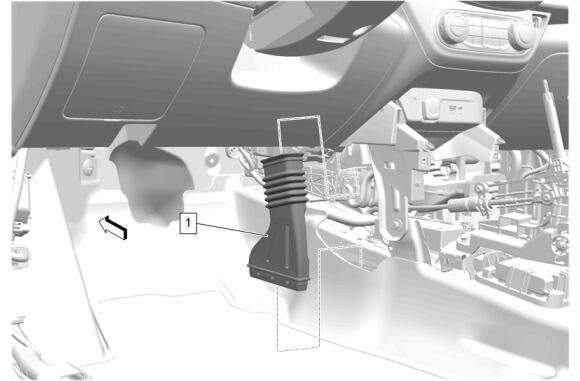

Floor Rear Air Outlet Duct Adapter (1) - Install
Courtesy of GENERAL MOTORS COMPANY

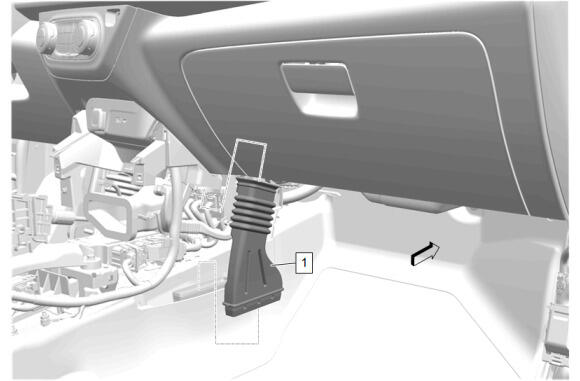

Floor Rear Air Outlet Duct Adapter (1) - Install
Courtesy of GENERAL MOTORS COMPANY

{K4C} Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Stowage Tray (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console (1) - Install - Front Floor Console Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Compartment Liner (1) - Install
Perform the necessary programming and setup procedure:Control Module References
