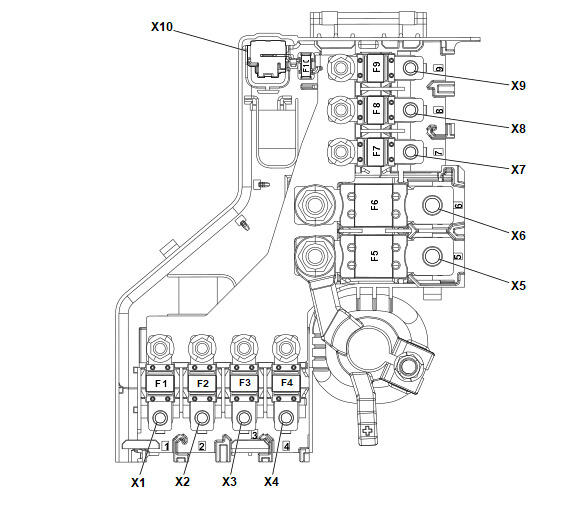

X50B Battery Distribution Engine Compartment Fuse Block - Top View

Courtesy of GENERAL MOTORS COMPANY

Usage Table

No.	Device Label Name	Device Assigned Name	Rating	Description
Fuses
1	-	F1BA	60A	K160 Brake System Control Module
2	-	F2BA	100A	E40 Air Heater
3	-	F3BA	150A	K43 Power Steering Control Module
4	-	F4BA	100A	G10 Cooling Fan Motor
5	-	F5BA	250A	X50A Engine Wiring Harness Junction Block
6	-	F6BA	350A	M64 Starter
7	-	F7BA	200A	X53A Body Wiring Harness Junction Block - Rear
8	-	F8BA	100A	X51A Instrument Panel Wiring Harness Junction Block
9	-	F9BA	100A	X51A Instrument Panel Wiring Harness Junction Block
10	-	F10BA	5A	B110 Battery Monitor Module
