S79D Front Side Door Window Control Switch - Driver X1

Courtesy of GENERAL MOTORS COMPANY

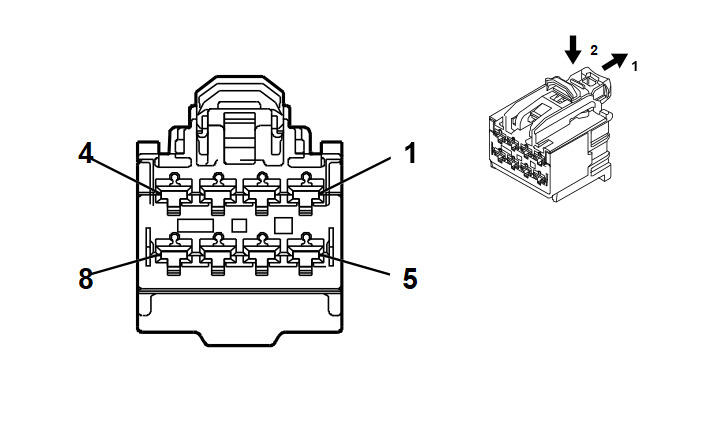

Connector Part Information Harness Type: Front Side Door Lock Door Wiring Harness - Driver OEM Connector: 13507063 Service Connector: Service by Harness - See Part Catalog Description: 8-Way F 2.8 OCS Series (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	Not required	J-35616-4A (PU)	No Tool Required

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	2.5 1	BK BK	3850 3850	Ground Ground	I I	WLD WLM
2	2.5 0.35	YE / VT WH / BN	165 2764	Left Front Window Motor Down Control Window Switch Left Front Down Signal	I I	WLD WLM
3	-	-	-	Not Occupied	-	-
4	0.35	GY / WH	2785	Left Front Mirror Motor Fold Out Control	I	DBT / DYX
5	0.5	WH	606	Left Outside Rearview Mirror Heater Control	I	(DWK / DYX / DBT) + (WLD / WLM)
6	-	-	-	Not Occupied	-	-
7	2.5 0.35	GN / GY GY / GN	164 2763	Left Front Window Motor Up Control Window Switch Left Front Up Signal	I I	WLD WLM
8	2.5 1	RD / BU RD / GN	540 2440	Battery Positive Voltage Battery Positive Voltage	I I	WLD WLM
