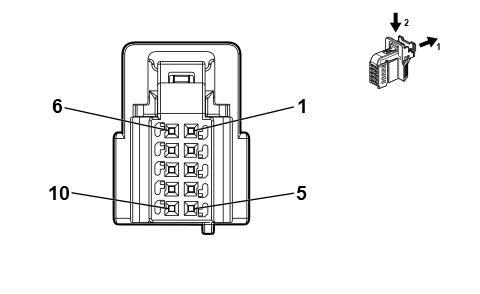

S78 Turn Signal Switch
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Instrument Panel Wiring Harness
- OEM Connector: 13518417
- Service Connector: 13518417
- Description: 10-Way F 0.64 MQS Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
19300632 |
J-35616-64B (L-BU) |
J-38125-215A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
WH / GN |
2915 |
Left Turn Signal Switch Signal |
I |
- |
| 2 |
0.35 |
VT / BU |
2916 |
Right Turn Signal Switch Signal |
I |
- |
| 3 |
0.35 |
BK / WH |
3251 |
Signal Ground |
I |
- |
| 4 |
0.35 |
BN / BU |
391 |
Rear Window Wiper Switch Signal |
I |
|
| 5 |
0.35 |
WH / BK |
94 |
Windshield Washer Switch Signal |
I |
- |
| 6 |
0.35 |
YE / BN |
307 |
Headlamp Switch Flash Signal |
I |
- |
| 7 |
0.35 |
WH |
524 |
High Beam Select Switch High Beam Signal |
I |
- |
| 8 |
0.35 |
BK / GY |
6009 |
Windshield Wiper Switch Low Reference |
I |
- |
| 9 |
0.35 |
GY |
1715 |
Windshield Wiper Switch High Signal |
I |
- |
| 10 |
0.35 |
YE / BU |
1714 |
Windshield Wiper Switch Low Signal |
I |
- |
