Installation Procedure
- CAUTION:
Ensure the seat heater is not folded or creased during installation as damage to the internal circuitry may occur, causing performance issues and damage to seat components.

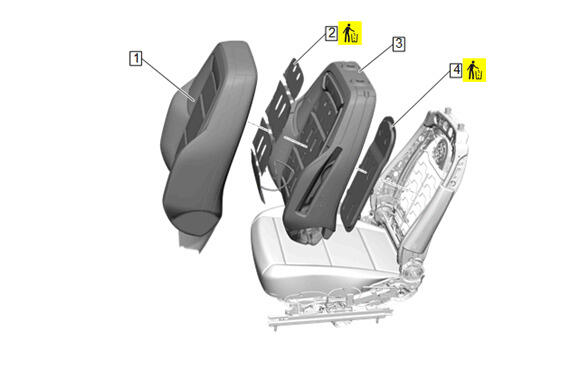

Install the front seat back heater (2) onto the front seat back pad (3).
- Install the front seat back cover (1) onto the front seat back pad (3).
- Using the appropriate tool, install NEW front seat cushion cover hog rings
- Front Seat Back Cover and Pad - Install - Front Seat Back Cover and Pad Removal and Installation (A2V) , or Front Seat Back Cover and Pad Removal and Installation (A2X / A7J) , or Front Seat Back Cover and Pad Removal and Installation (A7E)
