Installation Procedure

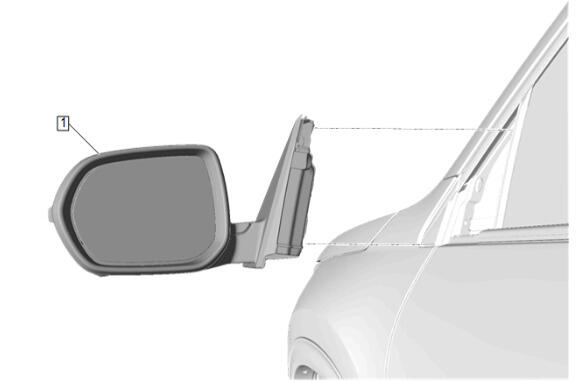

Outside Rearview Mirror (1) - Install
- Connect all electrical connectors.
- CAUTION:
Refer to Fastener Caution .
Outside Rearview Mirror Bolt (1) - Install and tighten [3x] - Fastener Specifications
- NOTE:
Ensure that the door weatherstrip is not trapped below the front side door window garnish molding (2) once completely installed. Reposition the weatherstrip as necessary.
Front Side Door Window Garnish Molding (2) - Install
- Front Side Door Window Garnish Molding Retainer (1) - Install [2x]
- Front Side Door Trim - Install - Front Side Door Trim Removal and Installation
