Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

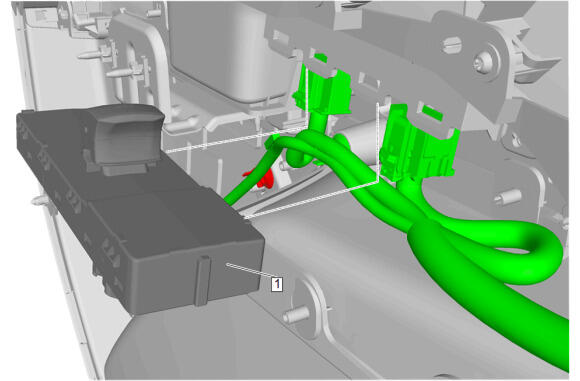

Front Side Door Window Switch (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Front Switch Plate (2) - Install
Front Switch Plate Bolt (1) - Install and tighten [10x] - Fastener Specifications
Connect the electrical connectors.
Front Side Door Trim - Install - Front Side Door Trim Removal and Installation
