Removal Procedure
- Front Floor Console - Remove - Front Floor Console Removal and Installation
Using a flat-bladed plastic trim tool, release the retaining clips.
- Front Floor Console Upper Panel (1) - Remove
Front Floor Console Compartment Bolt (1) - Remove [4x]
- Front Floor Console Front Compartment (2) - Remove
- Disconnect the electrical connector and release the wiring harness retainers as necessary.

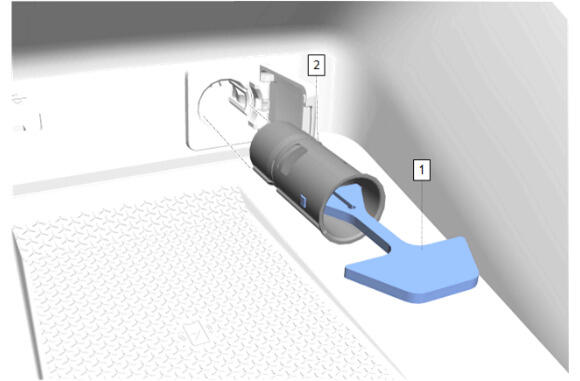

Insert the EL-52488 Accessory Power Outlet Socket Remover (1) into front floor console accessory power rear receptacle (2) and remove.
Using a suitable plastic trim tool, release the retaining tabs.

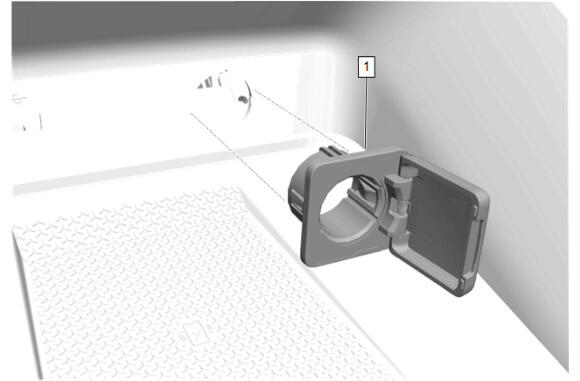

- Front Floor Console Accessory Power Rear Receptacle Retainer (1) - Remove
Using a suitable plastic trim tool, release the retaining tabs.

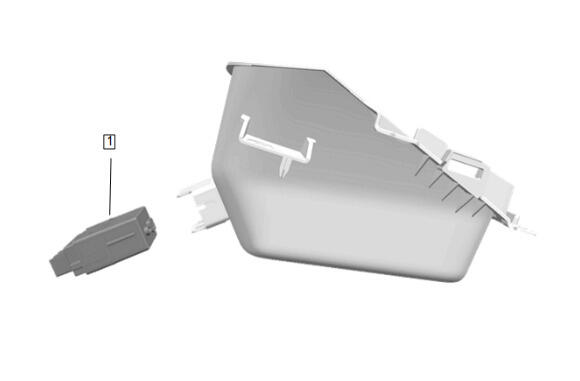

- Dual Charge Only Receptacle (1) - Remove
