Removal Procedure

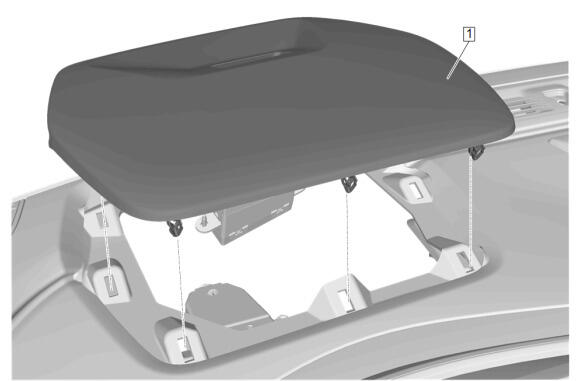

  1. GM6399474Courtesy of GENERAL MOTORS COMPANY

    Using a flat-bladed plastic trim tool, release the retaining clips.

  2. Forward Collision Alert Display Bezel (1) - Remove
