Fastener Specifications

Courtesy of GENERAL MOTORS COMPANY

Front Outer Grille Opening Bezel

Callout	Component Name [Component Quantity]	Single Use Fastener / Component	Thread Locking Adhesive Required	Specification	Procedure
Callout	Component Name [Component Quantity]	Single Use Fastener / Component	Thread Locking Adhesive Required	Metric (English)	Procedure

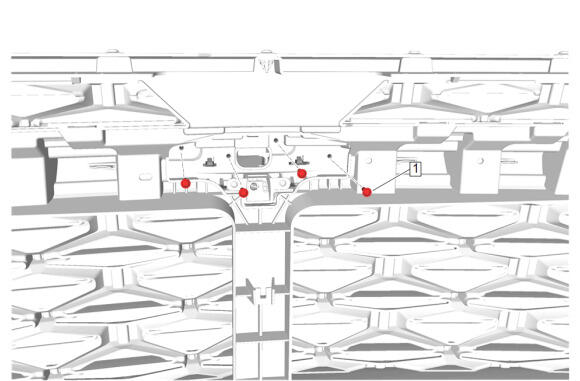

1	Front Grille Support Bracket Bolt [4x]	-	-	2.5 N.m (22 lb in)	Front Outer Grille Opening Bezel Replacement

Courtesy of GENERAL MOTORS COMPANY

Front Upper Grille

Callout	Component Name [Component Quantity]	Single Use Fastener / Component	Thread Locking Adhesive Required	Specification	Procedure
Callout	Component Name [Component Quantity]	Single Use Fastener / Component	Thread Locking Adhesive Required	Metric (English)	Procedure

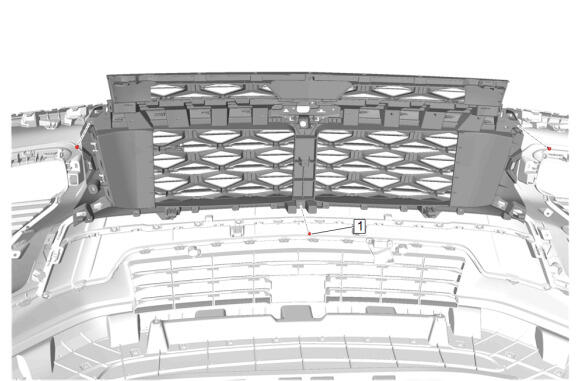

1	Front Grille Bolt [3x]	-	-	2.5 N.m (22 lb in)	Front Upper Grille Replacement (RS) , or Front Upper Grille Replacement (Base)

Courtesy of GENERAL MOTORS COMPANY

Rear Closure Center with License Plate Lamp Applique

Callout	Component Name [Component Quantity]	Single Use Fastener / Component	Thread Locking Adhesive Required	Specification	Procedure
Callout	Component Name [Component Quantity]	Single Use Fastener / Component	Thread Locking Adhesive Required	Metric (English)	Procedure

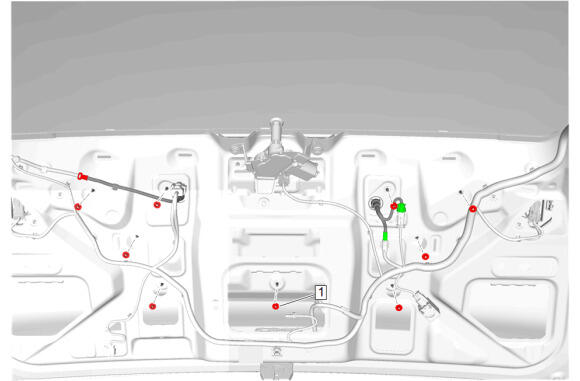

1	Rear Closure Center Applique Nut [9x]	-	-	4.7 N.m (42 lb in)	Rear Closure Center with License Plate Lamp Applique Replacement

Courtesy of GENERAL MOTORS COMPANY

Rear End Spoiler

Callout	Component Name [Component Quantity]	Single Use Fastener / Component	Thread Locking Adhesive Required	Specification	Procedure
Callout	Component Name [Component Quantity]	Single Use Fastener / Component	Thread Locking Adhesive Required	Metric (English)	Procedure

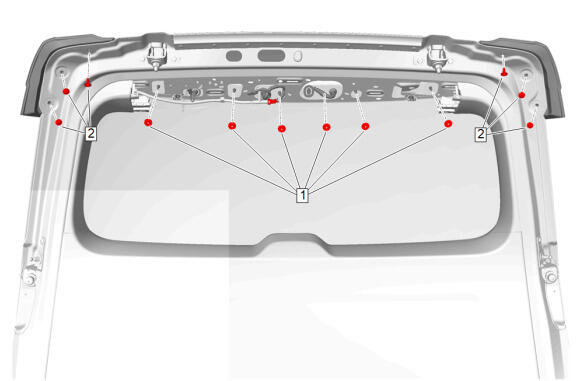

1	Rear End Spoiler Nut [6x]	-	-	9 N.m (80 lb in)	Rear End Spoiler Replacement , or Rear End Spoiler Replacement (Lower) , or Rear End Spoiler Replacement (Upper)


2	Rear End Spoiler Bolt [6x]	-	Yes	6 N.m (53 lb in)	Rear End Spoiler Replacement , or Rear End Spoiler Replacement (Lower) , or Rear End Spoiler Replacement (Upper)

Courtesy of GENERAL MOTORS COMPANY

Rear End Spoiler

Callout	Component Name [Component Quantity]	Single Use Fastener / Component	Thread Locking Adhesive Required	Specification	Procedure
Callout	Component Name [Component Quantity]	Single Use Fastener / Component	Thread Locking Adhesive Required	Metric (English)	Procedure
2	Rear End Spoiler Bolt [6x]	-	-	2.5 N.m (22 lb in)	Rear End Spoiler Replacement , or Rear End Spoiler Replacement (Lower) , or Rear End Spoiler Replacement (Upper)

Courtesy of GENERAL MOTORS COMPANY

Rear End Spoiler

Callout	Component Name [Component Quantity]	Single Use Fastener / Component	Thread Locking Adhesive Required	Specification	Procedure
Callout	Component Name [Component Quantity]	Single Use Fastener / Component	Thread Locking Adhesive Required	Metric (English)	Procedure
2	Rear End Spoiler Bolt [12x]	-	-	2.5 N.m (22 lb in)	Rear End Spoiler Replacement , or Rear End Spoiler Replacement (Lower) , or Rear End Spoiler Replacement (Upper)
