Removal Procedure

  1. GM4755895Courtesy of GENERAL MOTORS COMPANY

    Liftgate Lower Trim Finish Panel Access Hole Cover (1) - Remove

  2. Liftgate Lower Trim Finish Panel Bolt (2) - Remove
  3. Liftgate Lower Trim Finish Panel (3) - Remove
  4. Disconnect the electrical connector.

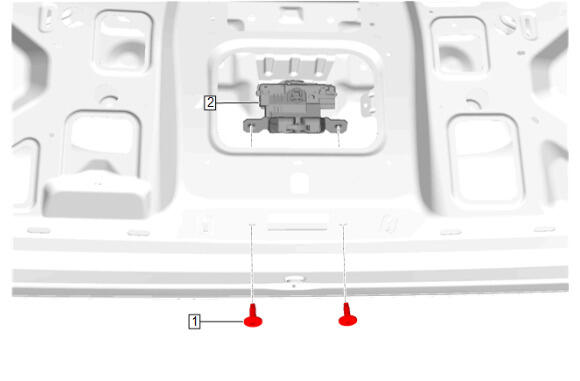

  5. GM6389418Courtesy of GENERAL MOTORS COMPANY

    Liftgate Latch Bolt (1) - Remove [2x]

  6. Disconnect the electrical connector.
  7. Liftgate Latch (2) - Remove
