Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

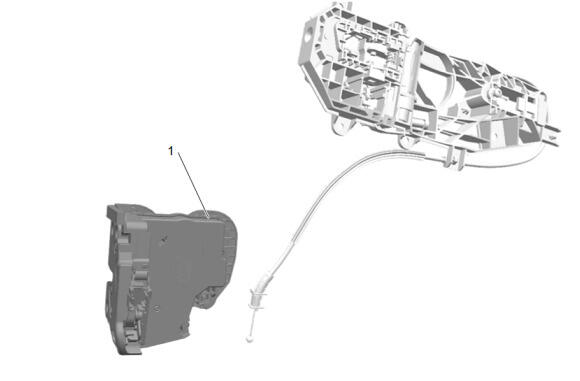

Front Side Door Latch (1) - Install

Courtesy of GENERAL MOTORS COMPANY

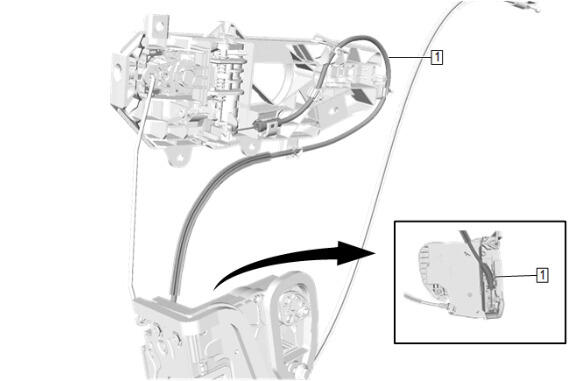

Front Side Door Outside Handle Cable (1) @ Front Side Door Latch - Install

Courtesy of GENERAL MOTORS COMPANY

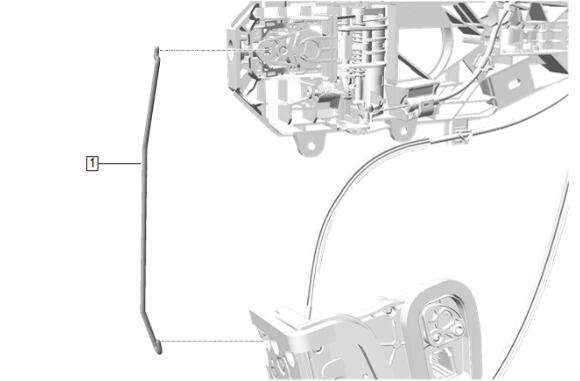

Front Side Door Lock Cylinder Rod (1) - Install

Courtesy of GENERAL MOTORS COMPANY

Install the front side door latch with front side door outside handle bracket (1) to the front side door.

Courtesy of GENERAL MOTORS COMPANY

Front Side Door Latch Bolt (1) - Tighten - Fastener Specifications

Courtesy of GENERAL MOTORS COMPANY

If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:

1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
3. Remove loose debris from internal and external threads using compressed air.
4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers

Courtesy of GENERAL MOTORS COMPANY

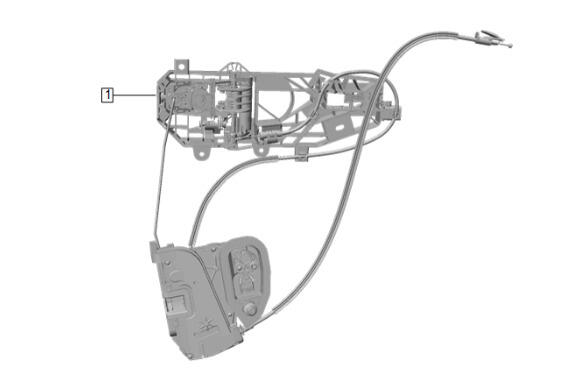

Front Side Door Outside Handle Bracket Screw (1) - Install and tighten - Fastener Specifications

Courtesy of GENERAL MOTORS COMPANY

Front Side Door Window Channel Retainer (2) - Install

1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
3. Remove loose debris from internal and external threads using compressed air.
4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers

Courtesy of GENERAL MOTORS COMPANY

If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:

1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
3. Remove loose debris from internal and external threads using compressed air.
4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers

Courtesy of GENERAL MOTORS COMPANY

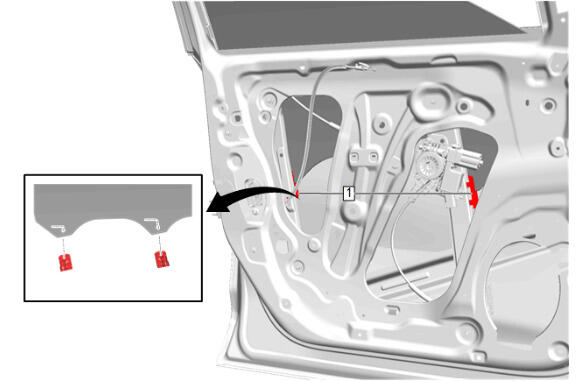

Place the window regulator sash retainers (1) in the full up position.

Courtesy of GENERAL MOTORS COMPANY

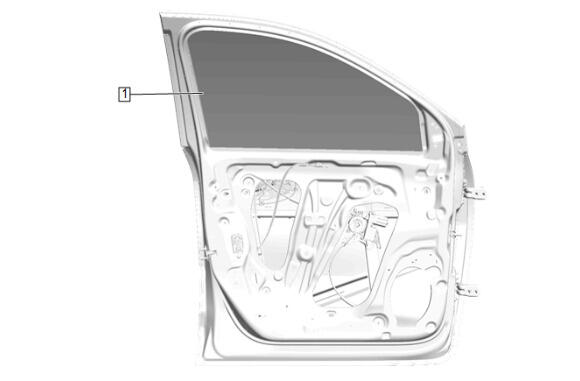

Remove the tape holding the front side door window (1) in the full up position.

Courtesy of GENERAL MOTORS COMPANY

Front Side Door Lock Cylinder (1) @ Front Side Door Outside Handle Bracket (2) - Install

Courtesy of GENERAL MOTORS COMPANY

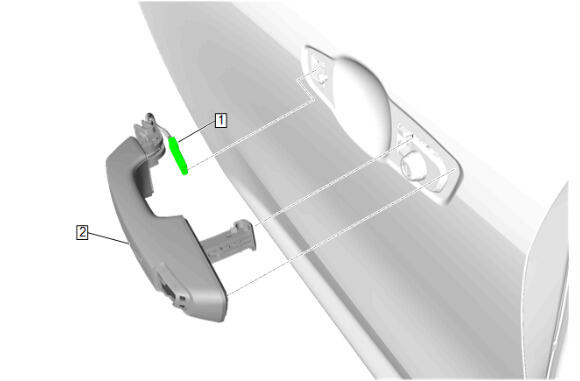

Front Side Door Outside Handle (2) - Install

Courtesy of GENERAL MOTORS COMPANY

Front Side Door Outside Handle Bracket Screw (1) - Install and tighten - Fastener Specifications

Courtesy of GENERAL MOTORS COMPANY

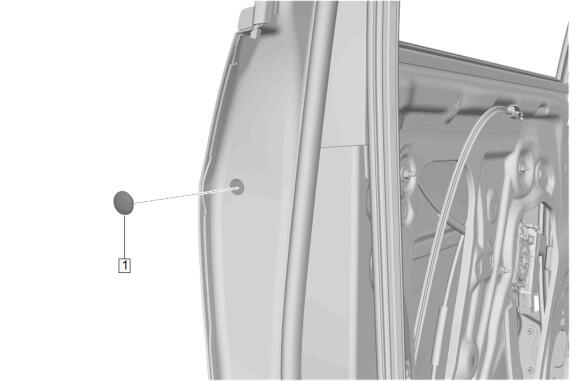

Front Side Door Outside Handle Access Hole Plug (1) - Install

Courtesy of GENERAL MOTORS COMPANY

Front Side Door Lock Cylinder Cover (1) - Install

Courtesy of GENERAL MOTORS COMPANY

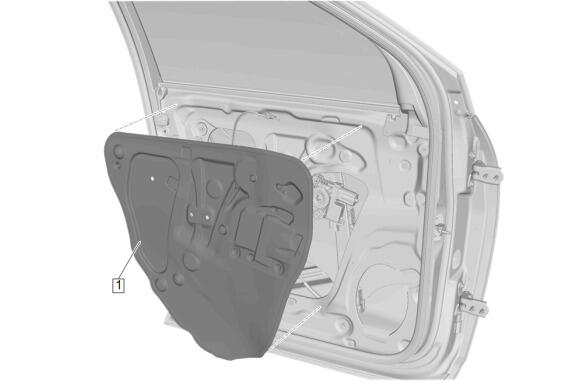

Front Side Door Water Deflector (1) - Install

Courtesy of GENERAL MOTORS COMPANY

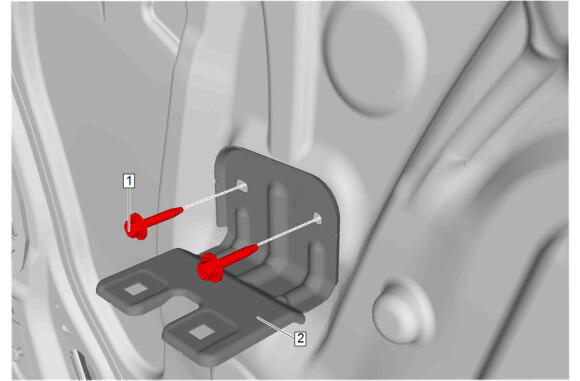

Front Side Door Armrest Bracket (2) - Install
