Installation Procedure

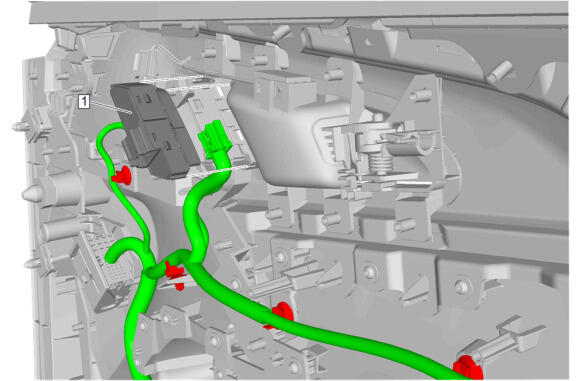

  1. GM6399472Courtesy of GENERAL MOTORS COMPANY

    Door Lock Switch- Driver Side (1) - Install

  2. Connect the electrical connector.
  3. Front Side Door Trim - Install - Front Side Door Trim Removal and Installation
