Power Transfer Unit - GKN 761
>>
Visual Identification
>>
Power Transfer Unit Case Disassembled View
>>

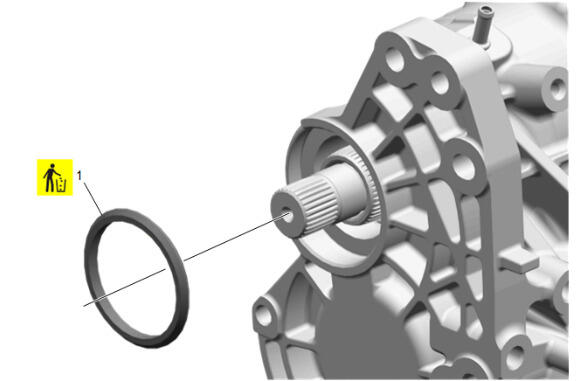

Power Transfer Unit Seal View
Power Transfer Unit Seal View
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Power Transfer Unit Face Seal - O-Ring
