External Components

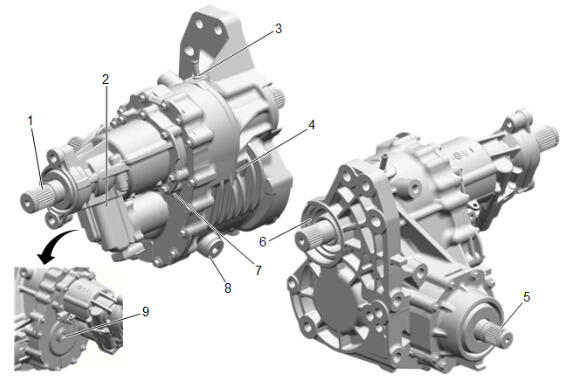

GM6361643Courtesy of GENERAL MOTORS COMPANY
  1. Power Transfer Unit Intermediate Drive Shaft
  2. Power Transfer Unit Shift Actuator
  3. Power Transfer Unit Vent Hose Connector
  4. Power Transfer Unit Weep Hole Location - Main Case / Left Input Shaft Seal
  5. Power Transfer Unit Rear Output Shaft
  6. Power Transfer Unit Input Disconnect Shaft
  7. Power Transfer Unit Weep Hole Location - Cover / Right Input Shaft Seal
  8. Power Transfer Unit Drain Plug
  9. Power Transfer Unit Fill Plug
