K73 Telematic Control Module X7

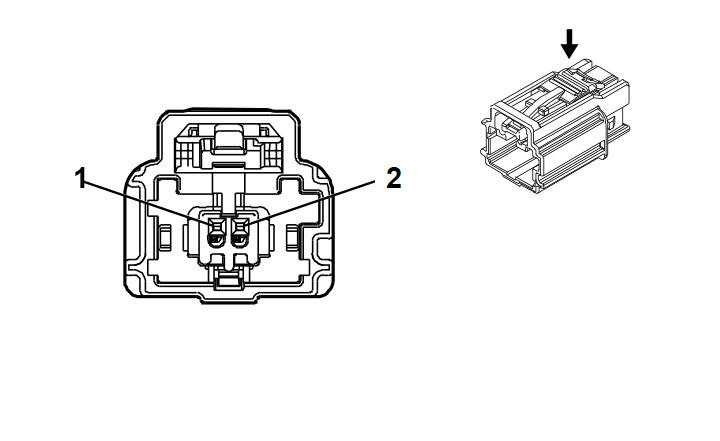

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | Service by Cable | EL-35616-58 (BK) | EL-38125-58 |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0 0.1 |
GY / WH GY / WH |
7211 7211 |
Ethernet Bus 4 [+] Ethernet Bus 4 [+] |
I I |
(UE1 / UER / UDA) (UE1 / UER / UDA / UES) |
| 2 | 0 0.1 |
GY GY |
7210 7210 |
Ethernet Bus 4 [-] Ethernet Bus 4 [-] |
I I |
(UE1 / UER / UDA) (UE1 / UER / UDA / UES) |
