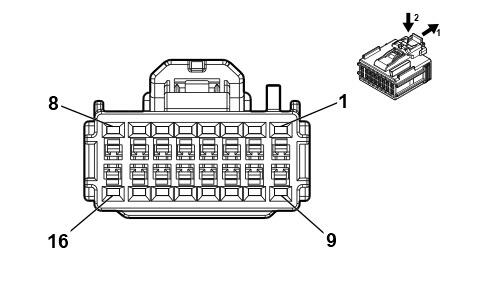

K194 Rear Gate Module X4
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body Wiring Harness
- OEM Connector: 13541574
- Service Connector: 13541574
- Description: 16-Way F 1.2 MCON Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
19371240 |
J-35616-12 (BU) |
J-38125-215A |
| II |
84962854 |
J-35616-12 (BU) |
J-38125-215A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1 |
BN |
4681 |
Rear Closure Cinch Latch Motor Cinch Control |
I |
- |
| 2 - 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0.35 |
GY / VT |
4678 |
Rear Closure Latch Unlatch Status |
II |
- |
| 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.35 |
WH / GN |
8084 |
Rear Closure Latch Neutral Status |
II |
- |
| 7 |
- |
- |
- |
Not Occupied |
- |
- |
| 8 |
0.35 |
GY / WH |
4658 |
Rear Closure Switch LED Control |
II |
- |
| 9 |
1 |
BU / GY |
4682 |
Rear Closure Cinch Latch Motor Release Control |
I |
- |
| 10 |
0.35 |
BK / VT |
4656 |
Rear Closure Object Sensor Low Reference |
II |
- |
| 11 - 12 |
- |
- |
- |
Not Occupied |
- |
- |
| 13 |
0.35 |
YE / BK |
8085 |
Rear Closure Latch Primary Status |
II |
- |
| 14 - 15 |
- |
- |
- |
Not Occupied |
- |
- |
| 16 |
0.35 |
GN |
4657 |
Rear Closure Switch Signal |
II |
- |
