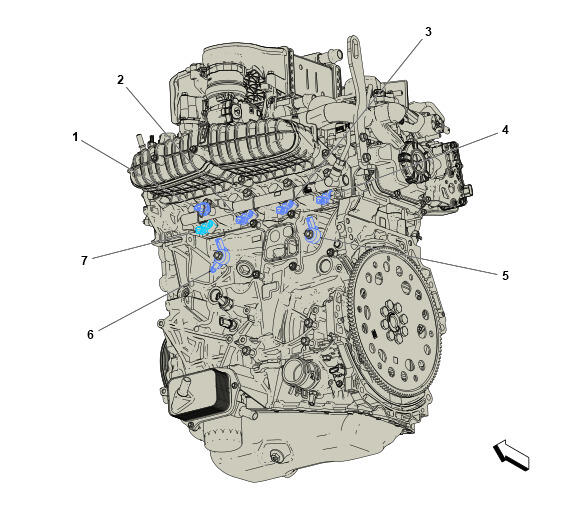

Center of Engine Components
| Callout | Items |
|---|---|
| 1 | B310 Fuel Pressure and Temperature Sensor B310 Fuel Pressure and Temperature Sensor |
| 2 | Q17B Fuel Injector 2 Q17B Fuel Injector 2 |
| 3 | Q17C Fuel Injector 3 Q17C Fuel Injector 3 |
| 4 | Q17D Fuel Injector 4 Q17D Fuel Injector 4 |
| 5 | B68B Knock Sensor 2 B68B Knock Sensor 2 |
| 6 | B68A Knock Sensor 1 B68A Knock Sensor 1 |
| 7 | Q17A Fuel Injector 1 Q17A Fuel Injector 1 |
