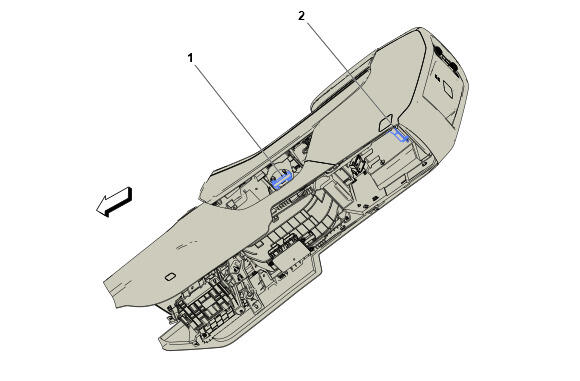

Left Lower Center Console Components

GM6432568Courtesy of GENERAL MOTORS COMPANY
Callout Items
1 T10UA Low Frequency Console Antenna T10UA Low Frequency Console Antenna
2 T10KA Low Frequency Console Number 2 Antenna T10KA Low Frequency Console Number 2 Antenna
