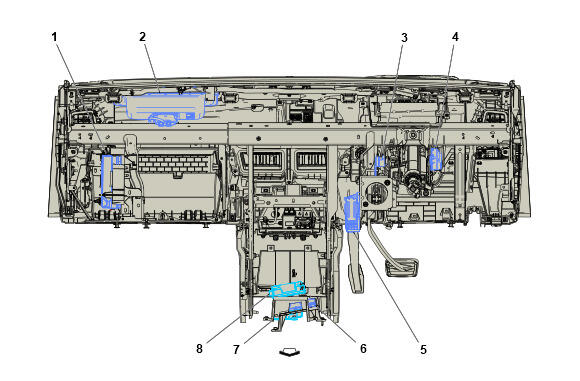

Behind Instrument Panel Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Items
1	A11 Radio A11 Radio X1 , or A11 Radio X10 , or A11 Radio X2 , or A11 Radio X3 , or A11 Radio X4 , or A11 Radio X5 , or A11 Radio X6 , or A11 Radio X7 , or A11 Radio X9
2	F101 Instrument Panel Airbag F101 Instrument Panel Airbag
3	B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor
4	K99 Steering Column Control Module (N38) K99 Steering Column Control Module X1 (N38) , or K99 Steering Column Control Module X2 (N38)
5	B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor
6	K9 Body Control Module K9 Body Control Module X1 , or K9 Body Control Module X2 , or K9 Body Control Module X3 , or K9 Body Control Module X4 , or K9 Body Control Module X5 , or K9 Body Control Module X6 , or K9 Body Control Module X7 , or K9 Body Control Module X8
7	K36 Restraints Control Module K36 Restraints Control Module X1 , or K36 Restraints Control Module X2
8	K56 Serial Data Gateway Module K56 Serial Data Gateway Module X1 , or K56 Serial Data Gateway Module X2 , or K56 Serial Data Gateway Module X3
